Komatsu

D50P-18

Crawler Dozer

Operating Weight
32,673 lb
Gross Power
130.0 hp
All crawler dozers

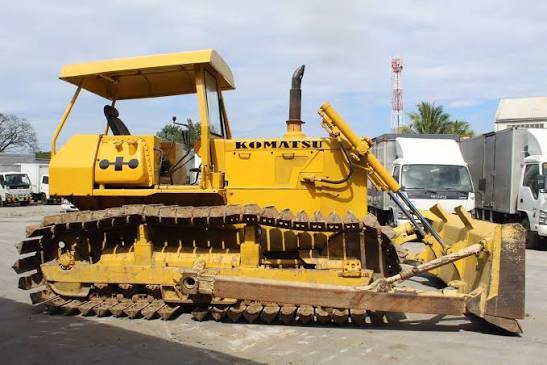

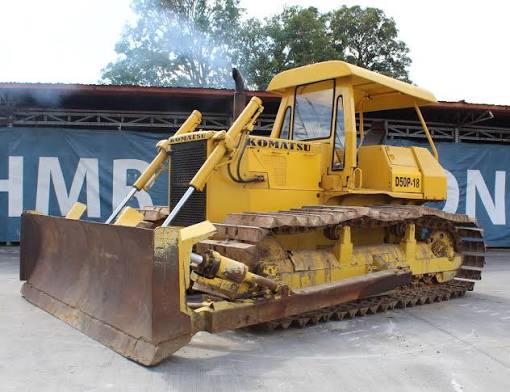

Komatsu D50P-18 Crawler Dozer
1 / 5
Image 1 of 5
Image: cgtrader.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,673 lb

Engine

Engine specifications
Engine Model6D125-1
Displacement674 in³
Power Measured @1,750 rpm
Gross Power130.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab118 in
Length of Track on Ground121 in
Width Over Tracks115 in
Length w/ Blade204 in
Length w/o Blade163 in

Transmission

Transmission specifications
Transmission TypeDD
Number of Forward Gears5
Number of Reverse Gears4

Undercarriage

Undercarriage specifications
Track Gauge81 in
Number of Track Rollers per Side8
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Standard Shoe Size34 in

Standard Blade

Standard Blade specifications
Width139 in
Height41 in
