Komatsu

D50P-18A

Crawler Dozer

Operating Weight
34,811 lb
Gross Power
130.0 hp
All crawler dozers

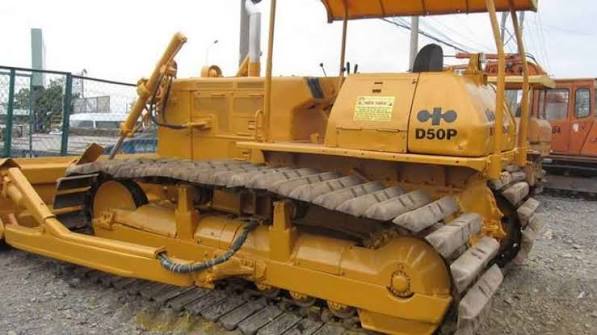

Komatsu D50P-18A Crawler Dozer
1 / 5
Image 1 of 5
Image: hmr.ph

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight34,811 lb

Engine

Engine specifications
Engine Model6D125-1
Displacement674 in³
Power Measured @1,750 rpm
Gross Power130.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab118 in
Length of Track on Ground124 in
Width Over Tracks119 in
Length w/ Blade217 in
Length w/o Blade163 in

Transmission

Transmission specifications
Transmission TypeDD
Number of Forward Gears5
Number of Reverse Gears4

Undercarriage

Undercarriage specifications
Track Gauge85 in
Number of Track Rollers per Side8
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Standard Shoe Size34 in
Track Pitch7 in

Standard Blade

Standard Blade specifications
Width152 in
Height41 in
