Komatsu
D61EX-15
- Operating Weight
- 36,840 lb
- Max Speed - Forward
- 5.4 mph
- Gross Power
- 170.0 hp
- Net Power
- 168.0 hp
1 / 5

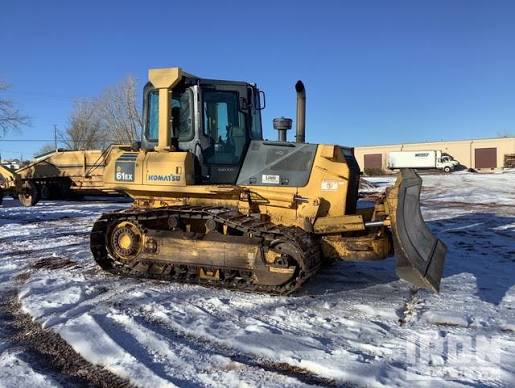

Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight | 36,840 lb |
|---|---|
| Fuel Capacity | 103.0 gal |
| Cooling System Fluid Capacity | 8.5 gal |
| Final Drives Fluid Capacity | 7.5 gal |
| Engine Oil Capacity | 7.7 gal |
Engine
| Engine Model | SAA6D107E-1 |
|---|---|
| Displacement | 408 in³ |
| Gross Power | 170.0 hp |
| Net Power | 168.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged air-to-air aftercooled |
| Make | Komatsu |
Hydraulic System
| Pump Flow Capacity | 51.5 gal/min |
|---|---|
| Pump Type | Double-acting piston |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 125 in |
| Length of Track on Ground | 198 in |
| Length w/ Blade | 199 in |
Transmission
| Max Speed - Forward | 5.4 mph |
|---|---|
| Max Speed - Reverse | 6.8 mph |
| Transmission Type | planetary gear multiple-disc clutch transmission |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 76 in |
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 40 |
| Ground Contact Area | 4,836 in³ |
Standard Blade
| Width | 128 in |
|---|---|
| Height | 392 in |
