Komatsu

D65PX-12E

Crawler Dozer

Operating Weight
44,644 lb
Gross Power
2,615.0 hp
All crawler dozers

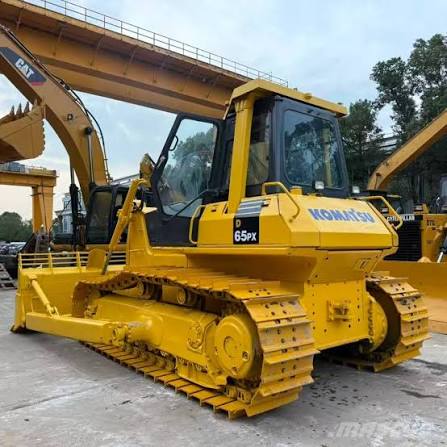

Komatsu D65PX-12E Crawler Dozer
1 / 5
Image 1 of 5
Image: marketbook.ug

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,644 lb

Engine

Engine specifications
Engine ModelS6D125E-2-A
Displacement67 in³
Power Measured @1,950 rpm
Gross Power2,615.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab122 in
Length of Track on Ground130 in
Width Over Tracks119 in
Length w/ Blade220 in
Length w/o Blade175 in

Transmission

Transmission specifications
Transmission TypeTFHSS
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge81 in
Number of Track Rollers per Side8
Number of Carrier Rollers per Side2
Standard Shoe Size38 in
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width157 in
Height43 in
