KomatsuKomatsu
D87E-3
Crawler Dozer
41 specifications
Komatsu
D65PX-15
- Operating Weight
- 46,300 lb
- Max Speed - Forward
- 6.3 mph
- Gross Power
- 207.0 hp
- Net Power
- 205.0 hp
1 / 5

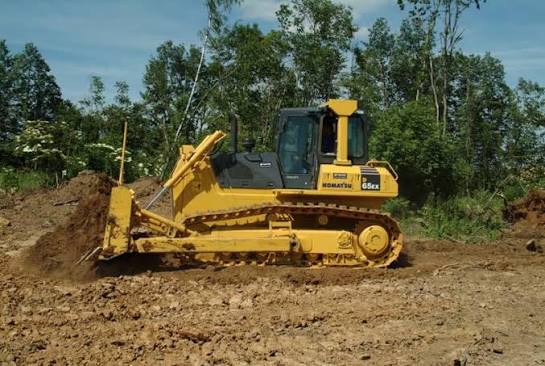

Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 46,300 lb |
|---|---|
| Fuel Capacity | 109.6 gal |
| Cooling System Fluid Capacity | 9.8 gal |
| Final Drives Fluid Capacity | 7.1 gal |
| Engine Oil Capacity | 7.4 gal |
Engine
| Engine Model | SAA6D114E-3 |
|---|---|
| Displacement | 505 in³ |
| Gross Power | 207.0 hp |
| Net Power | 205.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged air-to-air aftercooled |
| Make | Komatsu |
Hydraulic System
| Pump Flow Capacity | 55.5 gal/min |
|---|---|
| Pump Type | Double-acting piston |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 127 in |
| Length of Track on Ground | 130 in |
| Length w/ Blade | 219 in |
Transmission
| Max Speed - Forward | 6.3 mph |
|---|---|
| Max Speed - Reverse | 8.1 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 81 in |
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 45 |
| Ground Contact Area | 9,318 in³ |
