Komatsu

D80P-12

Crawler Dozer

Operating Weight
51,147 lb
Gross Power
180.0 hp
All crawler dozers

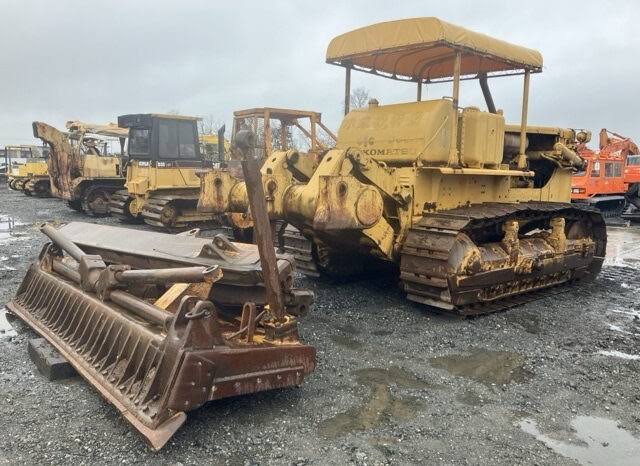

Komatsu D80P-12 Crawler Dozer
1 / 5
Image 1 of 5
Image: makana.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,147 lb

Engine

Engine specifications
Engine ModelNH220-C1
Displacement743 in³
Power Measured @1,850 rpm
Gross Power180.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab124 in
Length of Track on Ground121 in
Width Over Tracks106 in
Length w/ Blade238 in
Length w/o Blade181 in

Transmission

Transmission specifications
Transmission TypeDD
Number of Forward Gears5
Number of Reverse Gears4

Undercarriage

Undercarriage specifications
Track Gauge79 in
Number of Track Rollers per Side7
Number of Shoes per Side41
Number of Carrier Rollers per Side2
Standard Shoe Size36 in
Track Pitch9 in

Standard Blade

Standard Blade specifications
Width143 in
Height50 in
