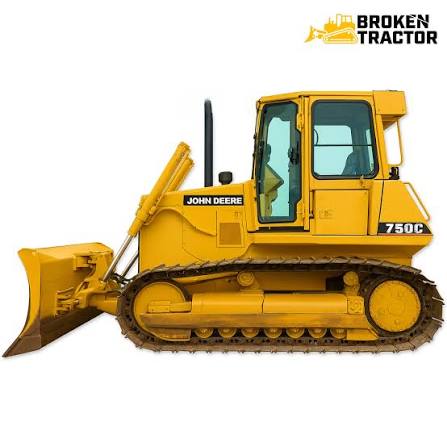

750C LT
Crawler Dozer
39 specifications
1 / 5
Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 56,218 lb |
|---|
Engine
| Engine Model | NT855 |
|---|---|
| Displacement | 855 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 220.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 135 in |
| Length of Track on Ground | 138 in |
| Width Over Tracks | 125 in |
| Length w/ Blade | 239 in |
| Length w/o Blade | 186 in |
Transmission
| Max Speed - Forward | 6.2 mph |
|---|---|
| Max Speed - Reverse | 5.9 mph |
| Transmission Type | DD |
| Number of Forward Gears | 5 |
| Number of Reverse Gears | 4 |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 89 in |
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 45 |
| Number of Carrier Rollers per Side | 2 |
| Standard Shoe Size | 36 in |
| Ground Contact Area | 9,820 in³ |
| Track Pitch | 9 in |
Standard Blade
| Width | 173 in |
|---|---|
| Height | 50 in |
| Capacity | 9.19 yd³ |
