John Deere

750C LT

Crawler Dozer

Operating Weight
33,736 lb
Max Speed - Forward
6.8 mph
Gross Power
148.0 hp
Net Power
140.0 hp
All crawler dozers

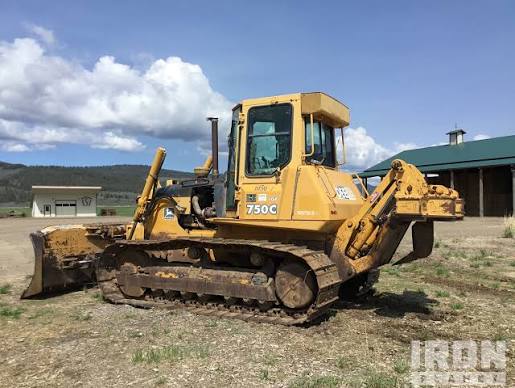

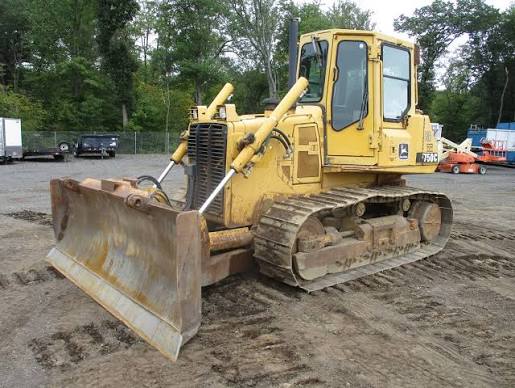

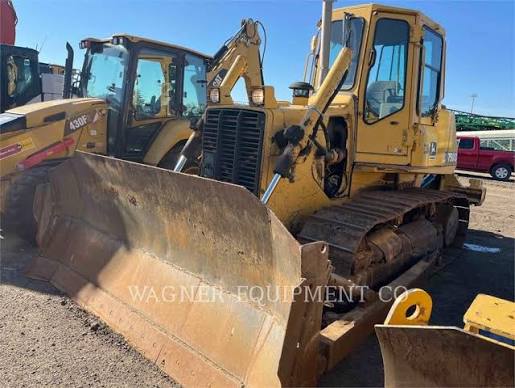

John Deere 750C LT Crawler Dozer
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight33,736 lb
Fuel Capacity74.0 gal
Cooling System Fluid Capacity7.0 gal
Final Drives Fluid Capacity6.3 gal
Engine Oil Capacity5.1 gal
Hydraulic Fluid Capacity18.0 gal
Operating Voltage24 V
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine Model6068T
Displacement414 in³
Power Measured @2,100 rpm
Gross Power148.0 hp
Net Power140.0 hp
Number of Cylinders6
AspirationTurbocharger
Torque Measured @1,300 rpm
Max Torque420 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity38.0 gal/min
Relief Valve Pressure2,000 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab121 in
Length of Track on Ground103 in
Width Over Tracks96 in
Length w/ Blade196 in

Transmission

Transmission specifications
Max Speed - Forward6.8 mph
Max Speed - Reverse6.8 mph
Transmission TypeHydrostatic drive

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge74 in
Number of Track Rollers per Side7
Number of Shoes per Side40
Standard Shoe Size22 in
Ground Contact Area4,488 in³
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width130 in
Height47 in
Capacity4.60 yd³
Blade Angle (both directions)24 °
