Komatsu

D85A-21E

Crawler Dozer

Operating Weight
61,796 lb
Gross Power
228.0 hp
All crawler dozers

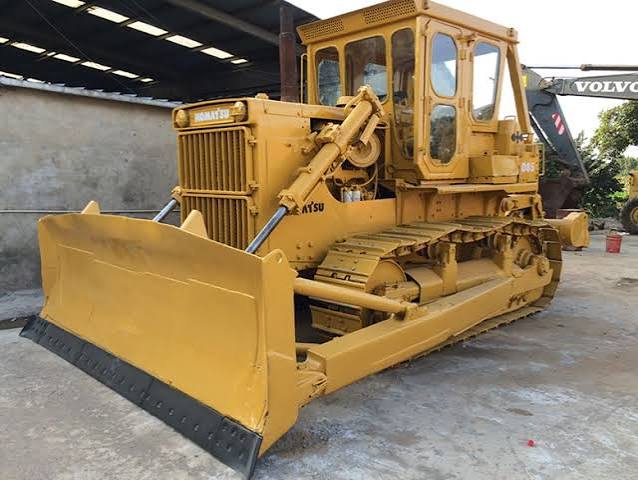

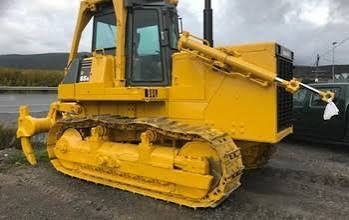

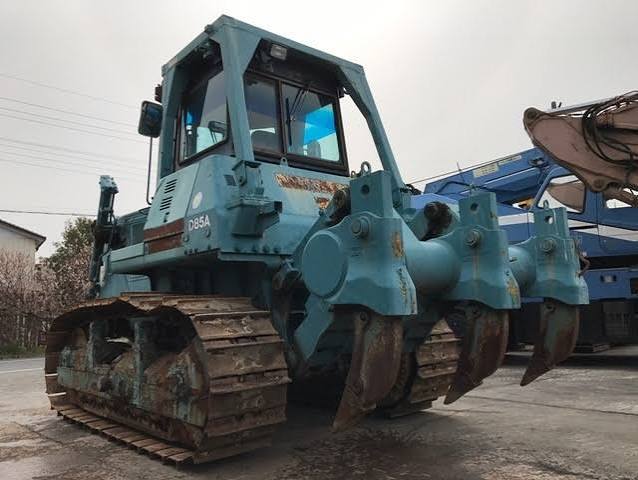

Komatsu D85A-21E Crawler Dozer
1 / 5
Image 1 of 5
Image: jikotrading.jp

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight61,796 lb

Engine

Engine specifications
Engine ModelS6D125E-2
Displacement674 in³
Power Measured @2,000 rpm
Gross Power228.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab138 in
Length of Track on Ground113 in
Width Over Tracks103 in
Length w/ Blade270 in
Length w/o Blade187 in

Transmission

Transmission specifications
Transmission TypeTF
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge79 in
Number of Track Rollers per Side7
Number of Shoes per Side39
Number of Carrier Rollers per Side2
Standard Shoe Size22 in
Track Pitch9 in

Standard Blade

Standard Blade specifications
Width148 in
Height57 in
