Komatsu

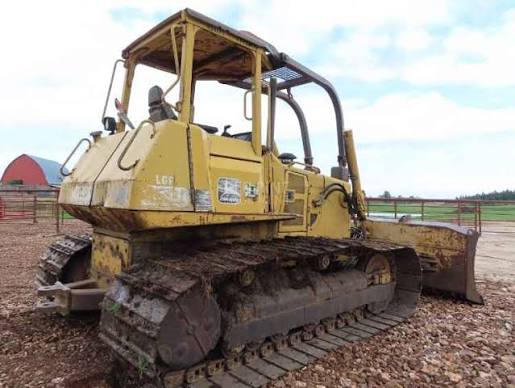

John Deere
750C LGP
Crawler Dozer
39 specifications

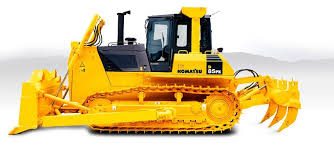

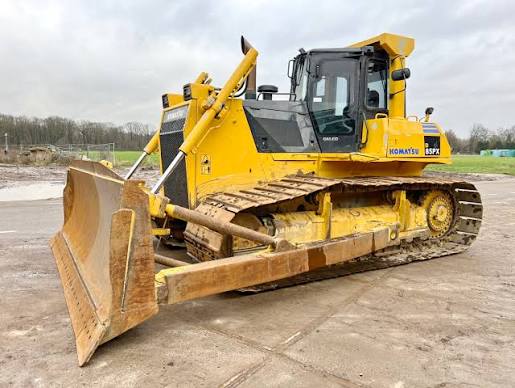

Komatsu
D85PX-15
- Operating Weight
- 60,960 lb
- Max Speed - Forward
- 6.2 mph
- Gross Power
- 266.0 hp
- Net Power
- 240.0 hp
1 / 5
Image 1 of 5
Specifications
34 data points
Operating Specifications
| Operating Weight | 60,960 lb |
|---|---|
| Fuel Capacity | 129.0 gal |
| Cooling System Fluid Capacity | 15.3 gal |
| Final Drives Fluid Capacity | 6.9 gal |
| Engine Oil Capacity | 10.0 gal |
| Hydraulic Fluid Capacity | 17.7 gal |
Engine
| Engine Model | SAA6D125E-5 |
|---|---|
| Displacement | 674 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 266.0 hp |
| Net Power | 240.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged air-to-air aftercooled cooled EGR |
| Make | Komatsu |
Hydraulic System
| Pump Flow Capacity | 51.5 gal/min |
|---|---|
| Relief Valve Pressure | 3,270 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 132 in |
| Length of Track on Ground | 138 in |
| Width Over Tracks | 90 in |
| Length w/ Blade | 239 in |
Transmission
| Max Speed - Forward | 6.2 mph |
|---|---|
| Max Speed - Reverse | 7.9 mph |
| Transmission Type | Komatsu TORQFLOW transmission |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 89 in |
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 45 |
| Standard Shoe Size | 36 in |
| Ground Contact Area | 9,820 in³ |
| Track Pitch | 89 in |
Standard Blade
| Width | 173 in |
|---|
Comparable machines
Other crawler dozers in a similar weight class.
