Komatsu
Nissan
PF30

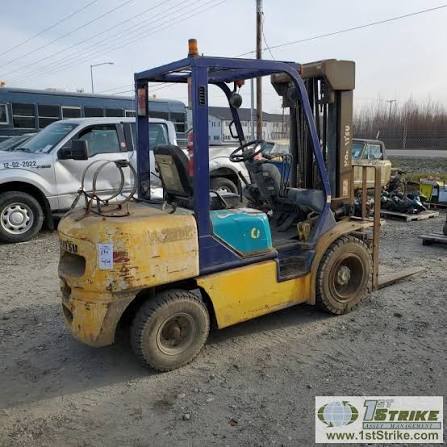

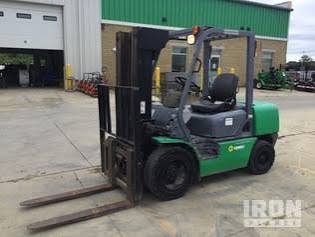

Forklift
29 specifications
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 9,458 lb |
|---|---|
| Max Speed | 11.2 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Fuel Capacity | 14.6 gal |
| Hydraulic Tank | 13.8 gal |
Engine
| Engine Model | H25 |
|---|---|
| Displacement | 151 in³ |
| Power Measured @ | 2,400 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,600 rpm |
| Bore | 4 in |
| Stroke | 4 in |
| Power | 60.0 hp |
| Fuel Type | Gasoline |
| Torque | 141 lb-ft |
| Air cleaner | Cyclone |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Wheelbase | 66 in |
| Overall Width | 49 in |
| Turning Radius | 95 in |
| Overall Height - mast lowered | 86 in |
| Length to Fork Face | 107 in |
| Height to Top of Overhead Guard | 83 in |
| Max Fork Height | 128 in |
| Right Angle Stack | 113 in |
Mast
| Load Capacity | 5,997 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.2 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 12 ° |
| Lower Speed | 1.1 mph |
