Komatsu

GD500R-2

Motor Grader

Max Power
130.0 hp
All motor graders

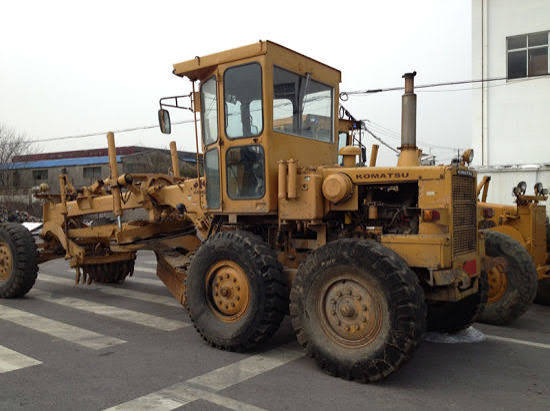

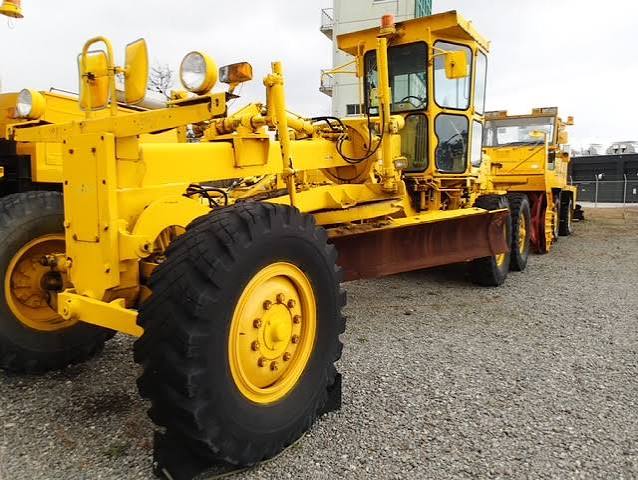

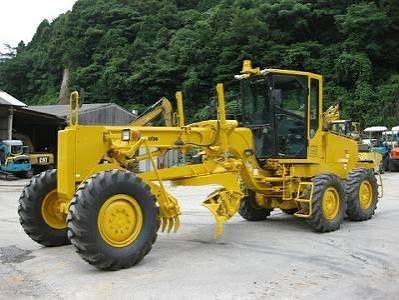

Komatsu GD500R-2 Motor Grader
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total23,149 lb
Tire Size13.00-24-8PR (G-2)
Std Operation Weight - Front Axle6,471 lb
Std Operation Weight - Rear Axle16,678 lb

Engine

Engine specifications
Engine ModelS6D105-1
Displacement396 in³
Max Power130.0 hp
Net Power Gear 4-6130.0 hp
Net Torque Gears 3-4345 lb-ft

Dimensions

Dimensions specifications
Wheelbase228 in
Overall Length312 in
Width Over Tires93 in
Height to Top of Isomount Cab118 in
Blade Base101 in
Tandem Axle Wheelbase60 in
Front Ground Clearance23 in
Rear Ground Clearance16 in

Transmission

Transmission specifications
Max Speed - Forward25.7 mph
Max Speed - Reverse15.9 mph
Number of Gears - Forward4
Number of Gears - Reverse4
Transmission Typeconstant mesh

Moldboard

Moldboard specifications
Moldboard Height26 in
Moldboard Width146 in
Moldboard Thickness1 in
Max Depth of Cut20 in

Circle

Circle specifications
Max Lift Above Ground17 in
Max Reach Outside Tires - Left81 in
Max Reach Outside Tires - Right79 in

Front Axle

Front Axle specifications
Wheel Lean20 °
Oscillation - Total30 °
Ground Clearance23 in

Steering System

Steering System specifications
Turning Radius410 in
