JD570
Motor Grader
49 specifications
1 / 5

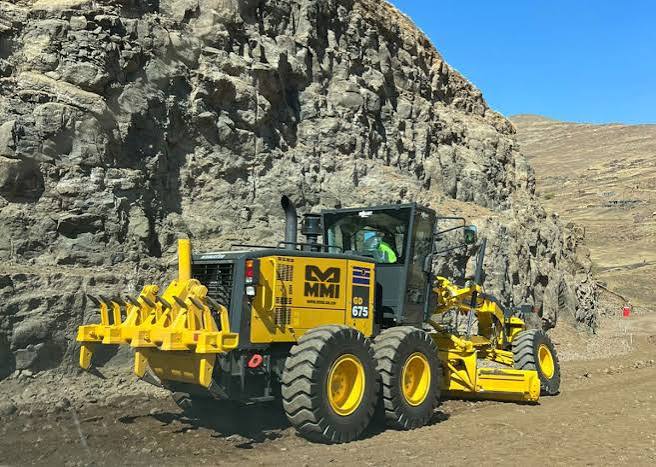

Image 1 of 5
Specifications
58 data points
Operating Specifications
| Std Operation Weight - Total | 35,175 lb |
|---|---|
| Tire Size | 17.5R25 |
| Fuel Capacity | 109.9 gal |
| Std Operation Weight - Front Axle | 9,645 lb |
| Std Operation Weight - Rear Axle | 25,530 lb |
| Hydraulic System Fluid Capacity | 18.3 gal |
| Tandem Case Fluid Capacity (each) | 15.1 gal |
| Operating Voltage | 24 V |
| Cooling System Fluid Capacity | 7.8 gal |
| Alternator Supplied Amperage | 60 A |
| Transmission Fluid Capacity | 11.9 gal |
| Circle Gearbox Fluid Capacity | 1.9 gal |
| Rear Diff/Final Drive Fluid Capacity | 4.5 gal |
Engine
| Engine Model | SAA6D107E-1 |
|---|---|
| Power Measured @ | 2,000 rpm |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,450 rpm |
| Stroke | 5 in |
| Bore | 4 in |
| Torque | 694 lb-ft |
| Net Power Gears 7-8 | 163.0 hp |
| Net Power Gear 4-6 | 149.0 hp |
| Net Power Gear 1-3 | 134.0 hp |
Hydraulic System
| Pump Flow | 52.9 gal/min |
|---|---|
| Pump Type | Load-sensing closed center hydraulics |
| Relief Valve Pressure | 435 psi |
Dimensions
| Wheelbase | 256 in |
|---|---|
| Overall Length | 417 in |
| Width Over Tires | 104 in |
| Height to Top of Isomount Cab | 126 in |
| Blade Base | 102 in |
| Tandem Axle Wheelbase | 61 in |
Transmission
| Max Speed - Forward | 27.5 mph |
|---|---|
| Max Speed - Reverse | 25.0 mph |
| Number of Gears - Forward | 8 |
| Number of Gears - Reverse | 4 |
| Transmission Type | Full power shift transmission |
Moldboard
| Moldboard Height | 25 in |
|---|---|
| Moldboard Width | 170 in |
| Moldboard Thickness | 1 in |
| Side Shift Left | 44 in |
| Side Shift Right | 44 in |
| Max Depth of Cut | 24 in |
Circle
| Max Lift Above Ground | 19 in |
|---|---|
| Max Reach Outside Tires - Left | 99 in |
| Max Reach Outside Tires - Right | 99 in |
| Diameter | 60 in |
| Blade Tip Angle - Front | 40 ° |
| Rotation | 360 ° |
| Blade Tip Angle - Rear | 5 ° |
| Shift Left | 23 in |
| Shift Right | 23 in |
Front Axle
| Wheel Lean | 16 ° |
|---|---|
| Oscillation - Total | 32 ° |
| Ground Clearance | 25 in |
Steering System
| Turning Radius | 292 in |
|---|---|
| Articulation Angle | 25 ° |
