Komatsu

HD325-3

Off-Highway Truck

Max Speed
38.6 mph
Gross Power
438.0 hp
All off-highway trucks

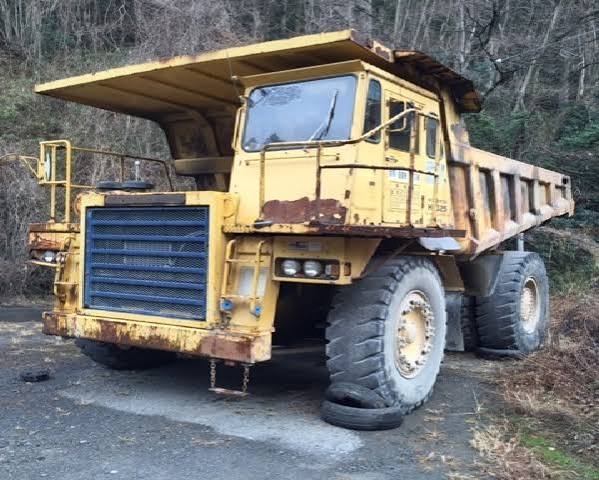

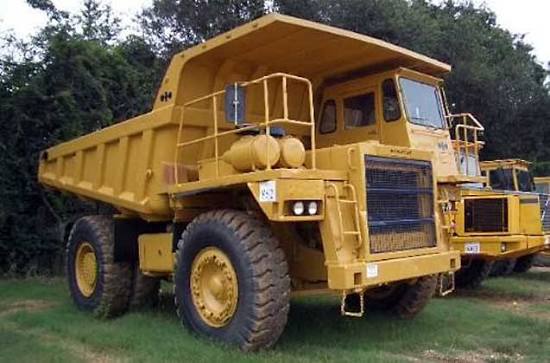

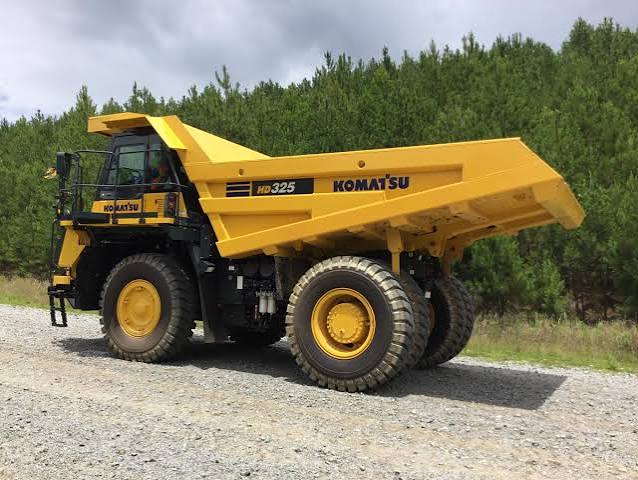

Komatsu HD325-3 Off-Highway Truck
1 / 5
Image 1 of 5
Image: smsequipment.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity132.1 gal
Tire Size18.00-33-28
Engine Oil Capacity10.1 gal
Cooling System Fluid Capacity35.2 gal
Hydraulic System Fluid Capacity29.1 gal
Alternator Supplied Amperage—
Diff and Final Drive Fluid Capacity18.8 gal

Engine

Engine specifications
Engine ModelKT1150
Displacement1,150 in³
Gross Power438.0 hp
Aspirationturbocharged
Torque Measured @—
Rated Engine Speed29 rpm

Weights

Weights specifications
Empty Weight58,643 lb
Loaded Weight129,191 lb
Weight Distribution Front - loaded32.0 %
Weight Distribution Rear - loaded68.0 %
Weight Distribution Front - empty48.0 %
Weight Distribution Rear - empty52.0 %

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase149 in
Overall Length301 in
Overall Width145 in
Overall Height156 in
Dump Height300 in
Dump Ground Clearance22 in

Transmission

Transmission specifications
Max Speed38.6 mph
Transmission Typeplanetary gear
Number of Gears - Forward6
Number of Gears - Reverse1

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank63,993.0 gal

Dump

Dump specifications
Dump Angle61 °
Load Capacity - heaped31.40 yd³
