Komatsu

HM300-2

Off-Highway Truck

Operating Weight
113,360 lb
Gross Power
340.0 hp
Net Power
329.0 hp
All off-highway trucks

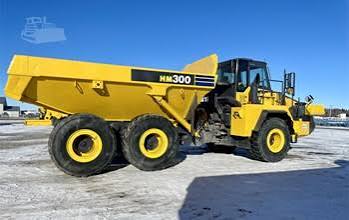

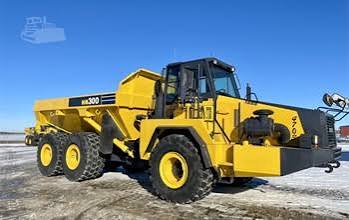

Komatsu HM300-2 Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

25 data points

Engine

Engine specifications
Engine ModelKomatsu SAA6D125E-5
Displacement674 in³
Power Measured @2,000 rpm
Gross Power340.0 hp
Net Power329.0 hp
Number of Cylinders6
AspirationTurbo-charged after-cooled cooled EGR
MakeKomatsu
Bore5 in
Stroke6 in

Weights

Weights specifications
Operating Weight113,360 lb
Rear Axle - empty21 lb
Front Axle - loaded30 lb
Rear Axle - loaded34 lb
Center Axle - empty24 lb
Center Axle - loaded35 lb
Gross Weight113,360 lb

Dimensions

Dimensions specifications
Ground Clearance20 in
Overall Length411 in
Overall Width115 in
Overall Height139 in

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload66,359 lb

Electrical System

Electrical System specifications
Alternator—
Starter motor—
