Komatsu
Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5

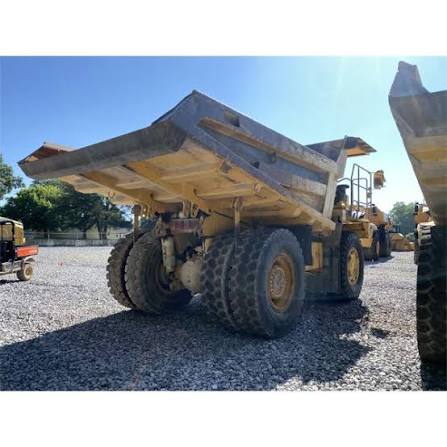

Image 1 of 5
Specifications
36 data points
Operating Specifications
| Fuel Capacity | 132.1 gal |
|---|---|
| Tire Size | 18.00R33 |
| Engine Oil Capacity | 13.8 gal |
| Cooling System Fluid Capacity | 23.6 gal |
| Hydraulic System Fluid Capacity | 34.1 gal |
| Alternator Supplied Amperage | — |
| Diff and Final Drive Fluid Capacity | 15.4 gal |
Engine
| Engine Model | SAA6D140E-3 |
|---|---|
| Displacement | 929 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 508.0 hp |
| Net Power | 488.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | — |
| Rated Engine Speed | 34 rpm |
Weights
| Empty Weight | 68,961 lb |
|---|---|
| Loaded Weight | 149,429 lb |
| Weight Distribution Front - loaded | 32.0 % |
| Weight Distribution Rear - loaded | 68.0 % |
| Weight Distribution Front - empty | 48.0 % |
| Weight Distribution Rear - empty | 52.0 % |
Dimensions
| Wheelbase | 149 in |
|---|---|
| Overall Length | 343 in |
| Overall Width | 179 in |
| Overall Height | 169 in |
| Dump Height | 311 in |
| Dump Ground Clearance | 22 in |
Transmission
| Max Speed | 43.2 mph |
|---|---|
| Transmission Type | full-automatic |
| Number of Gears - Forward | 7 |
| Number of Gears - Reverse | 1 |
Dump
| Rated Payload | 80,468 lb |
|---|---|
| Raise Time | 10.0 s |
| Load Capacity - heaped | 31.40 yd³ |
| Load Capacity - Struck | 23.60 yd³ |
