John Deere
Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5

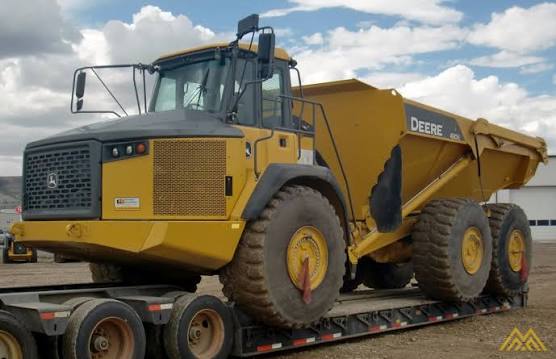

Image 1 of 5
Specifications
34 data points
Operating Specifications
| Fuel Capacity | 161.0 gal |
|---|---|
| Tire Size | 29.5R25 |
Engine
| Engine Model | PowerTech 6135 |
|---|---|
| Net Power | 443.0 hp |
| Max Torque | 1,685 lb-ft |
| Make | Deere |
Weights
| Operating Weight | 70,224 lb |
|---|---|
| Total Empty | 70,224 lb |
| Total Loaded | 152,381 lb |
| Gross Weight | 152,381 lb |
Dimensions
| Wheelbase | 350 in |
|---|---|
| Overall Length | 426 in |
| Overall Width | 135 in |
| Overall Height | 154 in |
| Dump Height | 121 in |
Transmission
| Max Speed | 34.0 mph |
|---|---|
| Transmission Type | Auto |
| Number of Forward Gears | 8 |
| Number of Reverse Gears | 4 |
General Specifications
| Operating Weight lbs (kg) | 70,224 (31,853) — Starting 2019 Model Year |
|---|---|
| Engine type | John Deere PowerTech 6135 FT4 engine — Starting 2019 Model Year |
| Articulated/Rigid | A — Starting 2019 Model Year |
| Drive Configuration | 6x6 — Starting 2019 Model Year |
| Rated Payload Tons (Metric Tons) | 41.1 (37.3) — Starting 2019 Model Year |
| Mfg. Model | 410E — Starting 2019 Model Year |
| Drive System Mech/Electr. | M — Starting 2019 Model Year |
Drive System
| Drive Config | 6x6 |
|---|
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 90,610 lb |
|---|---|
| Dump Angle | 70 ° |
| Raise Time | 10.0 s |
| Lower Time | 10.0 s |
| Capacity - Heaped | 29.70 yd³ |
| Capacity - Struck | 23.29 yd³ |
