Komatsu

PC09-1

Mini Excavator

Max Digging Depth
60 in
All mini excavators

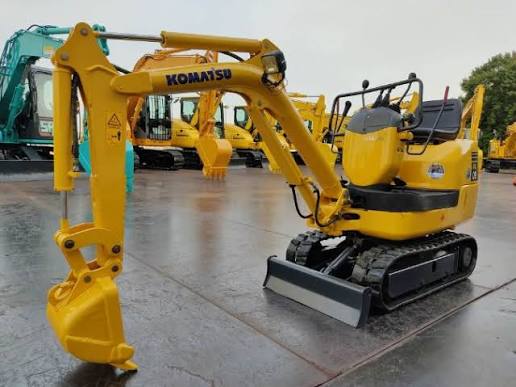

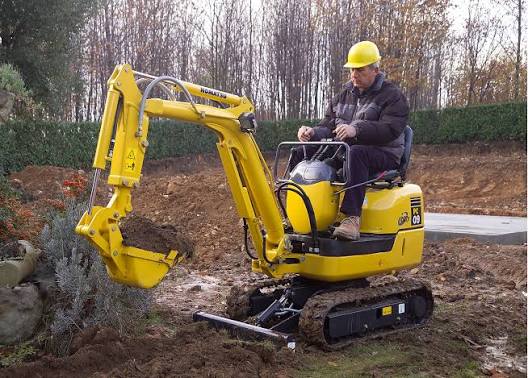

Komatsu PC09-1 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity3.0 gal
Hydraulic System Fluid Capacity2.4 gal
Engine Oil Capacity0.5 gal
Cooling System Fluid Capacity0.6 gal

Engine

Engine specifications
Engine Model2D70E
Displacement35 in³
Number of Cylinders2
AspirationWater-cooled 4 cycle turbulence chamber

Dimensions

Dimensions specifications
Ground Clearance67 in
Height - Top of Cab83 in
Tail Swing Radius31 in
Width to Outside of Tracks32 in
Digging Depth48 in
Digging Reach48 in

Undercarriage

Undercarriage specifications
Max Travel Speed1.9 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth60 in
Max Reach Along Ground119 in
Max Vertical Wall Digging Depth47 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.10 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
