Komatsu

PC100-6

Excavator

Operating Weight
23,700 lb
Max Digging Depth
189 in
Max Digging Depth
200 in
Net Power
80.5 hp
All excavators

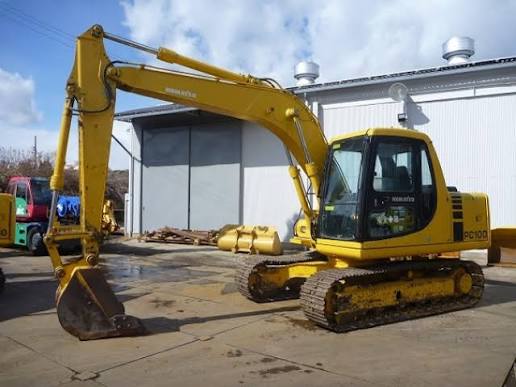

Komatsu PC100-6 Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,700 lb
Fuel Capacity60.8 gal
Hydraulic Pump Flow Capacity57.1 gal/min
Hydraulic System Fluid Capacity26.5 gal
Hydraulic System Relief Valve Pressure4,620 psi

Engine

Engine specifications
Engine ModelS4D102E
Displacement239 in³
Power Measured @2,100 rpm
Net Power80.5 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab108 in
Length of Track on Ground102 in
Tail Swing Radius84 in
Width to Outside of Tracks97 in
Removal Counterweight Clearance35 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge78 in
Max Travel Speed3.5 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth189 in
Max Reach Along Ground288 in
Max Loading Height216 in
Max Vertical Wall Digging Depth169 in
Max Cutting Height306 in
Shipping Length of Unit283 in
Shipping Height of Unit108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.60 yd³
Maximum Bucket Capacity0.80 yd³
Minimum Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth200 in
Max Vertical Wall Digging Depth178 in
Max Cutting Height315 in
Max Loading Height226 in
Max Reach Along Ground300 in
Shipping Length of Unit283 in
Shipping Height of Unit108 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth220 in
Max Cutting Height319 in
Max Loading Height230 in
Max Vertical Wall Digging Depth203 in
Max Reach Along Ground317 in
Shipping Length of Unit280 in
Shipping Height of Unit122 in
