Komatsu

PC160LC-7 Tier 3

Excavator

Operating Weight
37,787 lb
Max Digging Depth
235 in
Max Digging Depth
247 in
Net Power
115.4 hp
All excavators

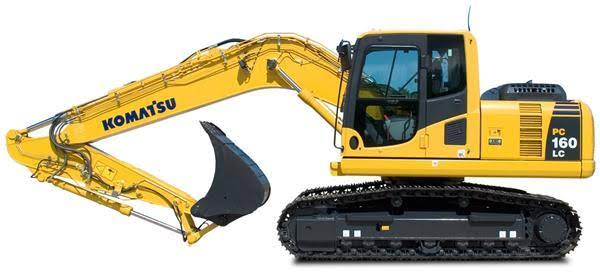

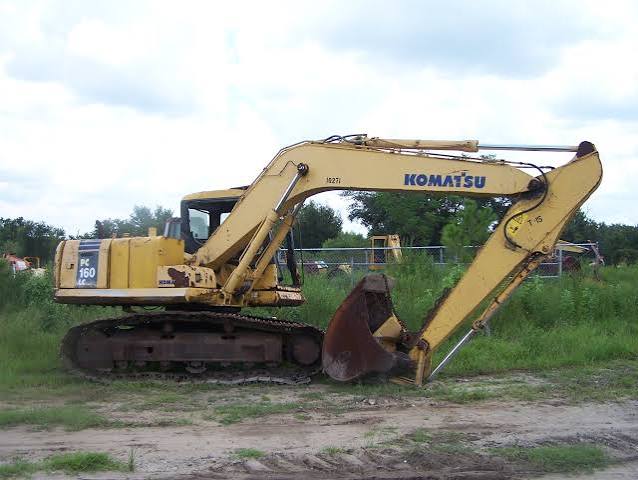

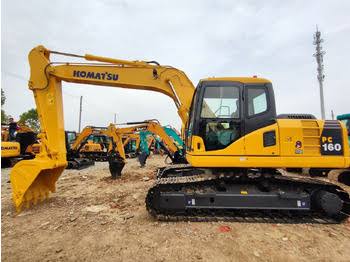

Komatsu PC160LC-7 Tier 3 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight37,787 lb
Fuel Capacity74.0 gal
Hydraulic System Fluid Capacity32.0 gal
Engine Oil Capacity4.3 gal
Swing Drive Fluid Capacity4.9 gal

Engine

Engine specifications
Engine ModelSAA4D107E-1
Displacement272 in³
Gross Power120.7 hp
Net Power115.4 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab83 in
Tail Swing Radius96 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side7
Max Travel Speed3.5 mph
Number of Shoes per Side44
Number of Carrier Rollers per Side2
Drawbar Pull3,585,703 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth235 in
Max Reach Along Ground347 in
Max Vertical Wall Digging Depth199 in

Bucket

Bucket specifications
Reference Bucket Capacity0.90 yd³
Maximum Bucket Capacity1.29 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth247 in
Max Vertical Wall Digging Depth210 in
Max Reach Along Ground364 in
