Komatsu

PC1800-6

Mini Excavator

Max Digging Depth
365 in
Gross Power
908.0 hp
All mini excavators

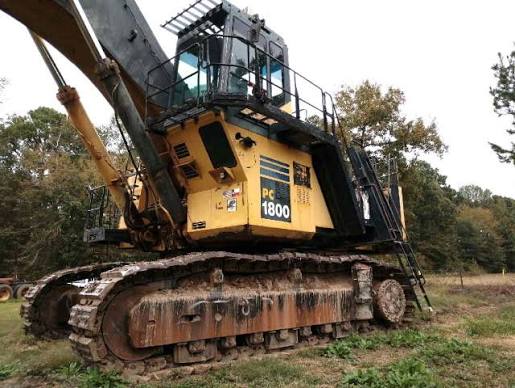

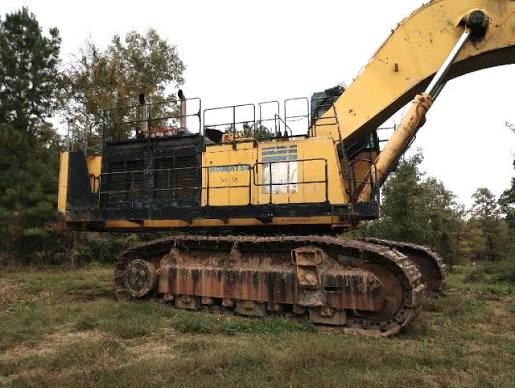

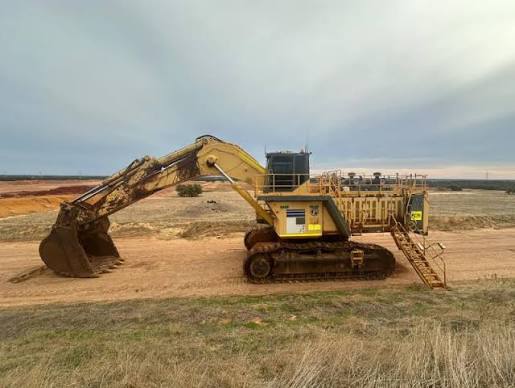

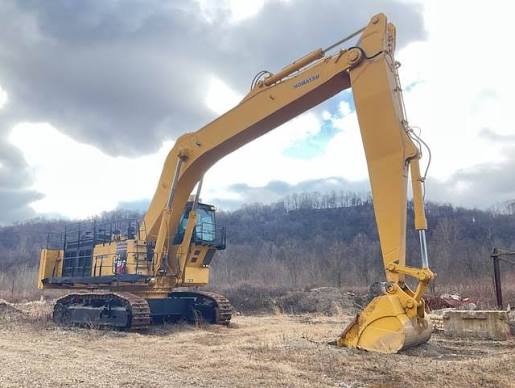

Komatsu PC1800-6 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

76 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity726.4 gal
Hydraulic Pump Flow Capacity442.8 gal/min
Hydraulic System Fluid Capacity396.3 gal
Hydraulic System Relief Valve Pressure4,550 psi
Engine Oil Capacity29.1 gal
Cooling System Fluid Capacity45.0 gal
Swing Drive Fluid Capacity15.9 gal

Engine

Engine specifications
Displacement930 in³
Power Measured @1,800 rpm
Gross Power908.0 hp
AspirationTurbocharged and air to air after cooled

Dimensions

Dimensions specifications
Ground Clearance32 in
Height - Top of Cab257 in
Length of Track on Ground228 in
Tail Swing Radius246 in
Width to Outside of Tracks214 in
Removal Counterweight Clearance83 in
Digging Depth360 in
Digging Reach360 in
Upper Structure Ground Clearance83 in
Length of Tracks294 in

Undercarriage

Undercarriage specifications
Ground Pressure25 psi
Track Gauge181 in
Number of Track Rollers per Side8
Max Travel Speed1.7 mph
Shoe Size32 in
Number of Shoes per Side49
Number of Carrier Rollers per Side3
Drawbar Pull231,480 lb
Number of Upper Rollers49
Number of Lower Rollers8
Backhoe Shoe Width 132 in
Backhoe Operating Weight - Shoe 1396,832 lb
Backhoe Ground Pressure - Shoe 125 psi
Number of Track Shoes per Side3
Backhoe Shoe Width 240 in
Backhoe Ground Pressure - Shoe 221 psi
Backhoe Operating Weight - Shoe 2405,915 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth365 in
Max Reach Along Ground604 in
Max Vertical Wall Digging Depth108 in
Max Loading Height340 in
Shipping Length of Unit677 in
Max Cutting Height527 in
Shipping Height of Unit267 in

Bucket

Bucket specifications
Reference Bucket Capacity15.70 yd³
Maximum Bucket Capacity15.70 yd³
Minimum Bucket Capacity7.70 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed5 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth395 in
Max Cutting Height534 in
Max Loading Height344 in
Max Vertical Wall Digging Depth219 in
Max Reach Along Ground632 in
Shipping Height of Unit270 in
Shipping Length of Unit689 in

Loading Shovel

Loading Shovel specifications
Max Dig Depth127 in
Max Dig Reach520 in
Max Cutting Height569 in
Max Dump Height380 in
Loading Shovelboom 3950mm w/ arm 4450mm

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth365 in
Max Cutting Height527 in
Max Dump Height340 in
Max Reach on Ground604 in
Max Vertical Wall Dig Depth108 in

Backhoe Boom / Stick 2

Backhoe Boom / Stick 2 specifications
Max Dig Depth395 in
Max Cutting Height54 in
Max Dump Height344 in
Max Reach on Ground632 in
Max Vertical Wall Dig Depth219 in

Backhoe Boom / Stick 3

Backhoe Boom / Stick 3 specifications
Max Dig Depth425 in
Max Cutting Height655 in
Max Dump Height452 in
Max Reach on Ground778 in
Max Vertical Wall Dig Depth355 in
