Komatsu

PC190LC-8

Excavator

Operating Weight
44,137 lb
Max Digging Depth
222 in
Max Digging Depth
236 in
Net Power
123.0 hp
All excavators

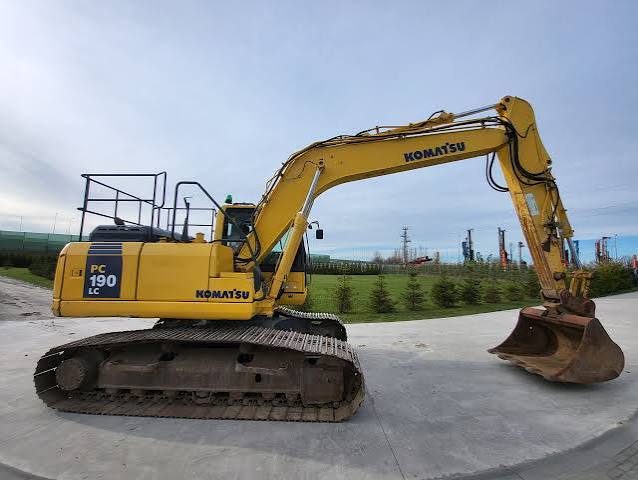

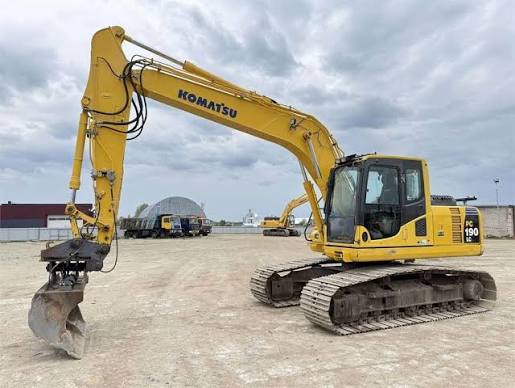

Komatsu PC190LC-8 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

68 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,137 lb
Fuel Capacity74.0 gal
Hydraulic Pump Flow Capacity82.5 gal/min
Cooling System Fluid Capacity4.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.2 gal

Engine

Engine specifications
Engine ModelSAA4D107E-1
Displacement272 in³
Power Measured @2,200 rpm
Gross Power130.0 hp
Net Power123.0 hp
AspirationTurbocharged
Engine MakeKomatsu

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab120 in
Length of Track on Ground161 in
Tail Swing Radius96 in
Width to Outside of Tracks110 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Track Gauge88 in
Number of Track Rollers per Side7
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side45
Number of Carrier Rollers per Side2
Drawbar Pull35,164 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth222 in
Max Reach Along Ground344 in
Max Loading Height253 in
Max Vertical Wall Digging Depth197 in
Max Cutting Height356 in
Shipping Length of Unit346 in
Shipping Height of Unit121 in

Bucket

Bucket specifications
Maximum Bucket Capacity1.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth236 in
Max Vertical Wall Digging Depth204 in
Max Cutting Height359 in
Max Loading Height257 in
Max Reach Along Ground355 in
Shipping Length of Unit346 in
Shipping Height of Unit122 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth247 in
Max Cutting Height365 in
Max Loading Height263 in
Max Vertical Wall Digging Depth216 in
Max Reach Along Ground366 in
Shipping Length of Unit346 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth205 in
Max Cutting Height372 in
Max Reach Along Ground333 in
Max Loading Height267 in
Max Vertical Wall Dig Depth167 in
Shipping Length of Unit335 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth217 in
Max Reach Along Ground346 in
Max Cutting Height378 in
Max Loading Height272 in
Max Vertical Wall Dig Depth179 in
Shipping Height of Unit118 in
Shipping Length of Unit335 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth229 in
Max Reach Along Ground356 in
Max Cutting Height385 in
Max Loading Height280 in
Max Vertical Wall Dig Depth191 in
Shipping Length of Unit335 in
Shipping Height of Unit120 in
