Komatsu

PC20-2

Mini Excavator

Operating Weight
6,170 lb
Max Digging Depth
97 in
Net Power
21.3 hp
All mini excavators

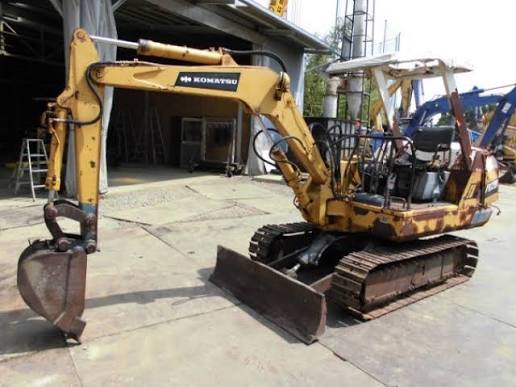

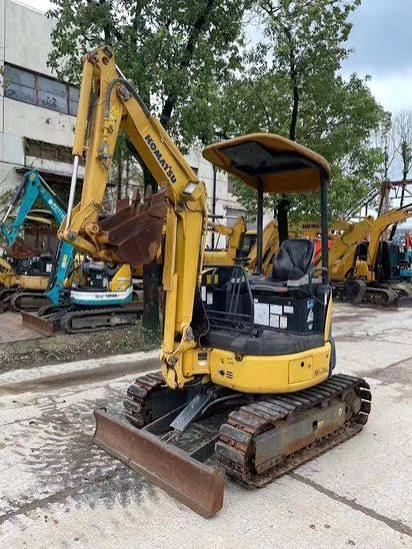

Komatsu PC20-2 Mini Excavator
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,170 lb
Fuel Capacity10.6 gal
Hydraulic Pump Flow Capacity20.7 gal/min
Hydraulic System Fluid Capacity17.2 gal
Hydraulic System Relief Valve Pressure2,490 psi

Engine

Engine specifications
Engine Model3D84-1A
Displacement86 in³
Net Power21.3 hp

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab93 in
Length of Track on Ground62 in
Tail Swing Radius55 in
Width to Outside of Tracks59 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge47 in
Max Travel Speed1.1 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth97 in
Max Reach Along Ground172 in
Max Vertical Wall Digging Depth78 in
Max Loading Height93 in
Shipping Length of Unit174 in
Max Cutting Height138 in
Shipping Height of Unit93 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth117 in
Max Cutting Height145 in
Max Loading Height101 in
Max Vertical Wall Digging Depth89 in
Max Reach Along Ground192 in
Shipping Height of Unit93 in
