Kubota
JCB
8010 CTS

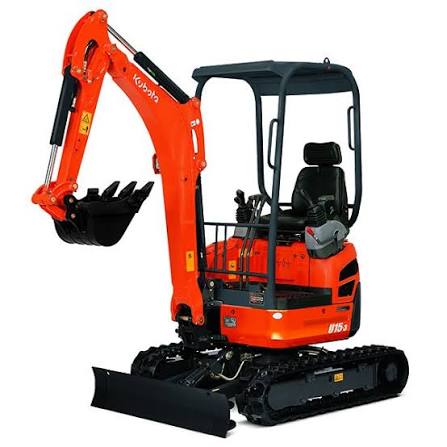

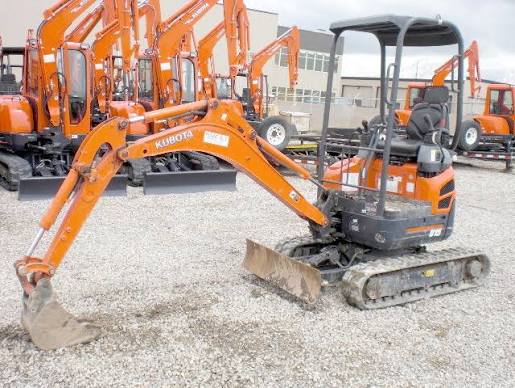

Mini Excavator
34 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 3,704 lb |
|---|---|
| Fuel Capacity | 4.7 gal |
| Hydraulic Pump Flow Capacity | 4.4 gal/min |
| Hydraulic System Fluid Capacity | 3.5 gal |
| Engine Oil Capacity | 1.0 gal |
| Cooling System Fluid Capacity | 0.7 gal |
Engine
| Engine Model | D1105 |
|---|---|
| Displacement | 48 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 12.9 hp |
| Net Power | 12.9 hp |
Dimensions
| Ground Clearance | 6 in |
|---|---|
| Width to Outside of Tracks | 49 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Max Travel Speed | 2.6 mph |
| Drawbar Pull | 4,405 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 91 in |
|---|---|
| Max Reach Along Ground | 151 in |
| Max Vertical Wall Digging Depth | 76 in |
| Max Loading Height | 97 in |
| Shipping Length of Unit | 142 in |
| Max Cutting Height | 141 in |
| Shipping Height of Unit | 91 in |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
