Komatsu

PC200-1

Excavator

Operating Weight
40,786 lb
Max Digging Depth
254 in
Net Power
105.0 hp
All excavators

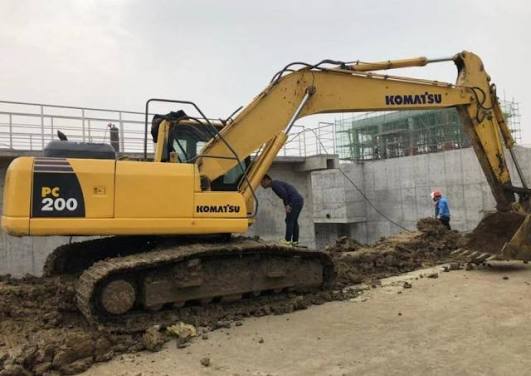

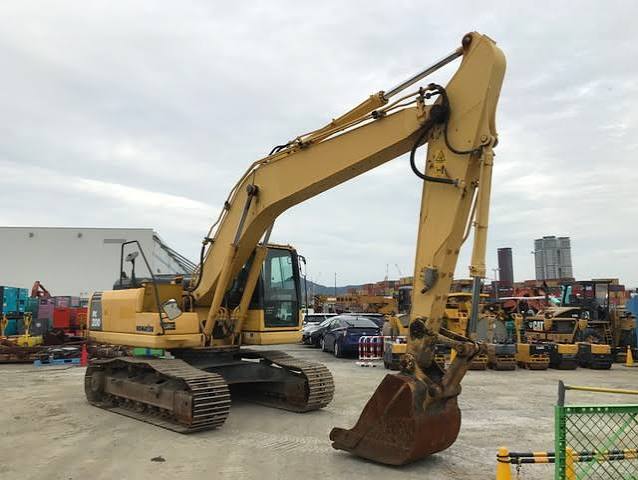

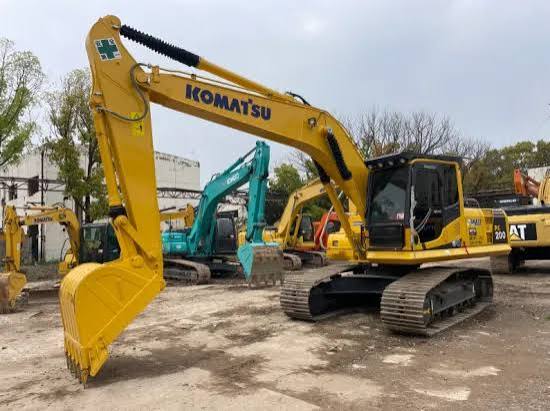

Komatsu PC200-1 Excavator
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,786 lb
Fuel Capacity68.7 gal
Hydraulic Pump Flow Capacity149.0 gal/min
Hydraulic System Fluid Capacity76.7 gal
Hydraulic System Relief Valve Pressure3,560 psi

Engine

Engine specifications
Engine Model6D105
Displacement396 in³
Net Power105.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab113 in
Length of Track on Ground121 in
Tail Swing Radius113 in
Width to Outside of Tracks109 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge85 in
Max Travel Speed2.3 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth254 in
Max Loading Height251 in
Max Vertical Wall Digging Depth227 in
Max Cutting Height357 in
Shipping Length of Unit372 in
Shipping Height of Unit113 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
