Komatsu

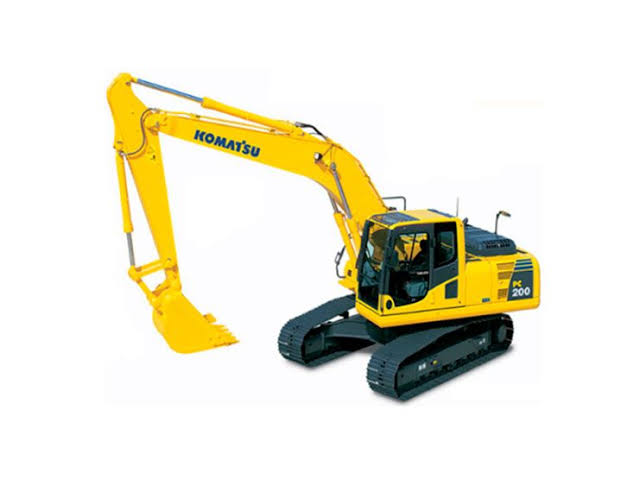

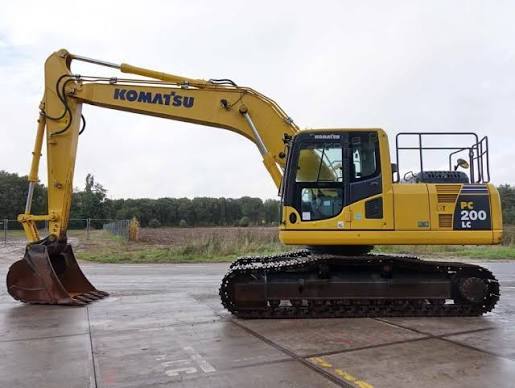

PC200LC-8
- Operating Weight
- 47,260 lb
- Max Digging Depth
- 261 in
- Max Digging Depth
- 261 in
- Net Power
- 148.0 hp
1 / 5
Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 47,260 lb |
|---|---|
| Fuel Capacity | 105.7 gal |
| Hydraulic Pump Flow Capacity | 116.0 gal/min |
| Hydraulic System Fluid Capacity | 35.7 gal |
| Hydraulic System Relief Valve Pressure | 5,400 psi |
| Engine Oil Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 5.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.7 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | SAA6D107E-1 |
|---|---|
| Displacement | 408 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 155.0 hp |
| Net Power | 148.0 hp |
| Aspiration | Turbocharged and Aftercooled |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 120 in |
| Length of Track on Ground | 144 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Track Gauge | 95 in |
|---|---|
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 40,016 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 261 in |
|---|---|
| Max Reach Along Ground | 383 in |
| Max Loading Height | 281 in |
| Max Vertical Wall Digging Depth | 215 in |
| Max Cutting Height | 386 in |
| Shipping Length of Unit | 233 in |
| Shipping Height of Unit | 126 in |
Bucket
| Reference Bucket Capacity | 1.40 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.60 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 261 in |
|---|---|
| Max Vertical Wall Digging Depth | 235 in |
| Max Cutting Height | 395 in |
| Max Loading Height | 281 in |
| Max Reach Along Ground | 383 in |
| Shipping Length of Unit | 198 in |
| Shipping Height of Unit | 120 in |
