Komatsu
JCB
8010 CTS
Mini Excavator
34 specifications
1 / 5

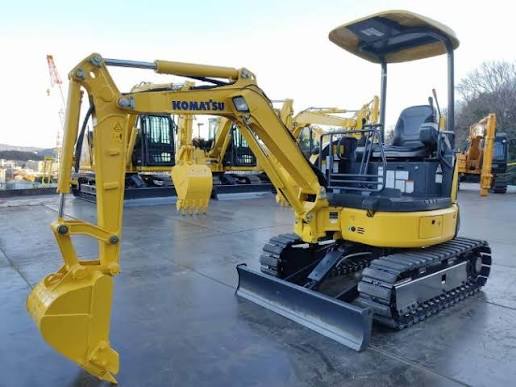

Image 1 of 5
Specifications
27 data points
Operating Specifications
| Fuel Capacity | 6.7 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 15.8 gal/min |
| Hydraulic System Fluid Capacity | 5.6 gal |
| Hydraulic System Relief Valve Pressure | 2,990 psi |
Engine
| Engine Model | 3D74E |
|---|---|
| Displacement | 61 in³ |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 96 in |
| Length of Track on Ground | 73 in |
| Tail Swing Radius | 32 in |
| Width to Outside of Tracks | 57 in |
| Removal Counterweight Clearance | 22 in |
| Digging Depth | 84 in |
| Digging Reach | 84 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 48 in |
| Max Travel Speed | 3.0 mph |
| Shoe Size | 10 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 94 in |
|---|---|
| Max Reach Along Ground | 163 in |
| Max Vertical Wall Digging Depth | 80 in |
| Max Loading Height | 102 in |
| Max Cutting Height | 152 in |
Bucket
| Reference Bucket Capacity | 0.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.20 yd³ |
| Minimum Bucket Capacity | 0.10 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
