Komatsu
Link Belt
135 Spin Ace
Excavator
46 specifications
1 / 5

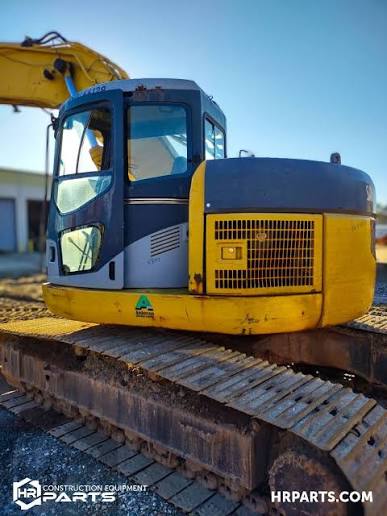

Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 48,356 lb |
|---|---|
| Fuel Capacity | 84.6 gal |
| Hydraulic Pump Flow Capacity | 113.1 gal/min |
| Hydraulic System Fluid Capacity | 33.3 gal |
| Hydraulic System Relief Valve Pressure | 5,512 psi |
| Engine Oil Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 6.0 gal |
| Swing Drive Fluid Capacity | 1.8 gal |
Engine
| Engine Model | SAA6D102E |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 1,950 rpm |
| Net Power | 143.0 hp |
| Aspiration | Turbocharged with aftercooler |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 130 in |
| Tail Swing Radius | 67 in |
| Width to Outside of Tracks | 110 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 88 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 45 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 45,415 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 261 in |
|---|---|
| Max Reach Along Ground | 383 in |
| Max Loading Height | 308 in |
| Max Vertical Wall Digging Depth | 236 in |
| Max Cutting Height | 422 in |
| Shipping Length of Unit | 343 in |
| Shipping Height of Unit | 119 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
