Komatsu

PC228USLC-1

Excavator

Operating Weight
50,486 lb
Max Digging Depth
269 in
Net Power
128.8 hp
All excavators

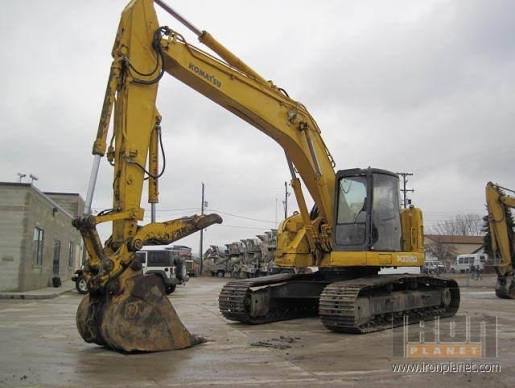

Komatsu PC228USLC-1 Excavator
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,486 lb
Fuel Capacity62.1 gal
Hydraulic Pump Flow Capacity108.9 gal/min
Hydraulic System Fluid Capacity63.2 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelS6D102E-1
Displacement359 in³
Power Measured @2,000 rpm
Net Power128.8 hp

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab119 in
Length of Track on Ground144 in
Tail Swing Radius65 in
Width to Outside of Tracks122 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge95 in
Max Travel Speed3.2 mph
Shoe Size28 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth269 in
Max Reach Along Ground381 in
Max Loading Height306 in
Max Vertical Wall Digging Depth233 in
Max Cutting Height422 in
Shipping Length of Unit350 in
Shipping Height of Unit119 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
Maximum Bucket Capacity2.00 yd³
Minimum Bucket Capacity0.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
