Komatsu

PC228USLC-2

Excavator

Operating Weight
49,659 lb
Max Digging Depth
254 in
Max Digging Depth
269 in
Net Power
132.8 hp
All excavators

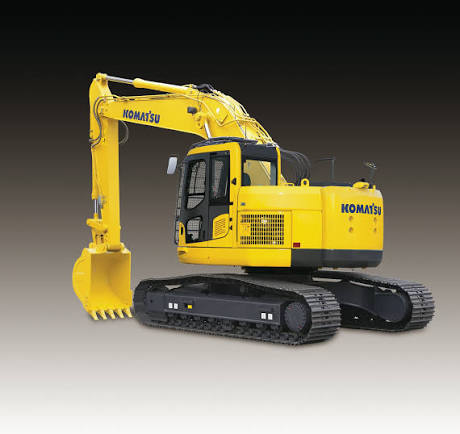

Komatsu PC228USLC-2 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,659 lb
Fuel Capacity66.1 gal
Hydraulic Pump Flow Capacity109.0 gal/min
Engine Oil Capacity7.0 gal
Swing Drive Fluid Capacity1.5 gal

Engine

Engine specifications
Engine ModelS6D102E-1
Displacement359 in³
Power Measured @2,000 rpm
Net Power132.8 hp
AspirationTurbocharged
Engine MakeKomatsu
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab118 in
Length of Track on Ground144 in
Tail Swing Radius67 in
Width to Outside of Tracks122 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Number of Track Rollers per Side9
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull45,195 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth254 in
Max Reach Along Ground362 in
Max Loading Height287 in
Max Vertical Wall Digging Depth217 in
Max Cutting Height402 in
Shipping Length of Unit350 in

Bucket

Bucket specifications
Maximum Bucket Capacity1.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth269 in
Max Vertical Wall Digging Depth233 in
Max Cutting Height420 in
Max Loading Height305 in
Max Reach Along Ground381 in
Shipping Length of Unit350 in
