Volvo

EC140B LC

Excavator

Operating Weight
29,990 lb
Max Digging Depth
203 in
Max Digging Depth
219 in
Net Power
93.0 hp
All excavators

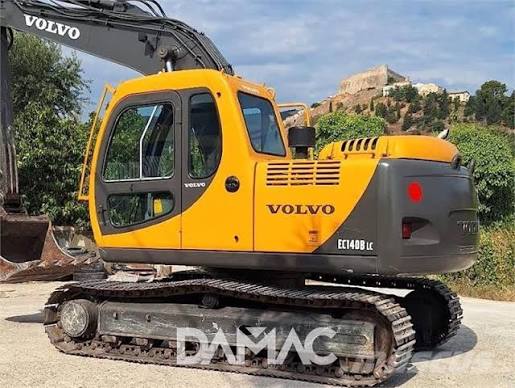

Volvo EC140B LC Excavator
1 / 5
Image 1 of 5
Image: sodineg.com

Specifications

76 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,990 lb
Fuel Capacity68.7 gal
Hydraulic Pump Flow Capacity62.0 gal/min
Hydraulic System Fluid Capacity54.2 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity4.1 gal
Cooling System Fluid Capacity5.4 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.1 gal
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD4D EBE2
Displacement244 in³
Power Measured @2,100 rpm
Gross Power98.0 hp
Net Power93.0 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque288 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab109 in
Length of Track on Ground119 in
Tail Swing Radius84 in
Width to Outside of Tracks102 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge79 in
Number of Track Rollers per Side7
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side46
Number of Carrier Rollers per Side1
Drawbar Pull24,700 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth203 in
Max Reach Along Ground308 in
Max Loading Height227 in
Max Vertical Wall Digging Depth181 in
Max Cutting Height323 in
Shipping Length of Unit300 in
Shipping Height of Unit107 in

Bucket

Bucket specifications
Reference Bucket Capacity1.20 yd³
Maximum Bucket Capacity1.29 yd³
Minimum Bucket Capacity0.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth219 in
Max Vertical Wall Digging Depth200 in
Max Cutting Height332 in
Max Loading Height236 in
Max Reach Along Ground323 in
Shipping Length of Unit298 in
Shipping Height of Unit111 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth238 in
Max Cutting Height346 in
Max Loading Height250 in
Max Vertical Wall Digging Depth217 in
Max Reach Along Ground343 in
Shipping Length of Unit289 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth196 in
Max Cutting Height365 in
Max Reach Along Ground312 in
Max Loading Height268 in
Max Vertical Wall Dig Depth169 in
Shipping Length of Unit300 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth215 in
Max Reach Along Ground328 in
Max Cutting Height379 in
Max Loading Height282 in
Max Vertical Wall Dig Depth183 in
Shipping Height of Unit117 in
Shipping Length of Unit298 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth235 in
Max Reach Along Ground347 in
Max Cutting Height398 in
Max Loading Height301 in
Max Vertical Wall Dig Depth205 in
Shipping Length of Unit289 in
Shipping Height of Unit132 in
