Komatsu

PC228USLC-3E0

Excavator

Operating Weight
49,891 lb
Max Digging Depth
261 in
Net Power
147.6 hp
All excavators

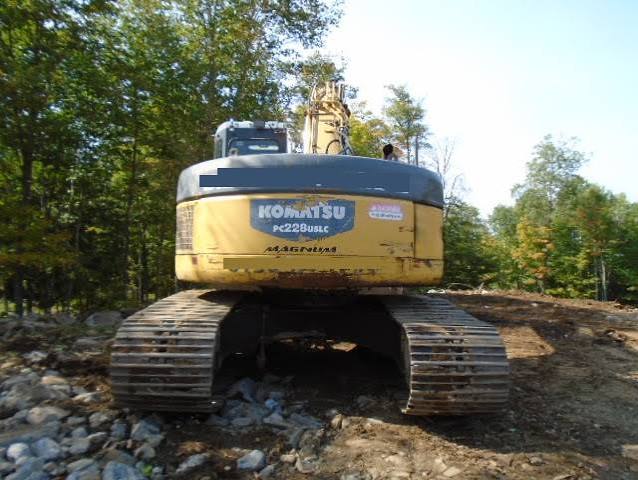

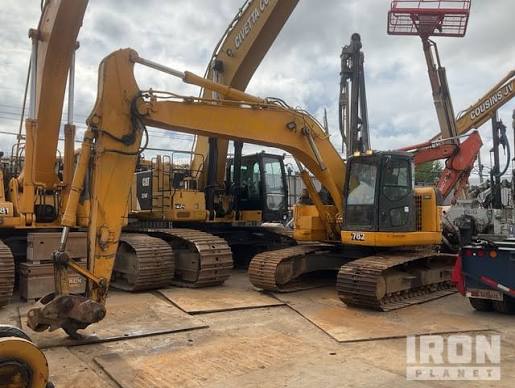

Komatsu PC228USLC-3E0 Excavator
1 / 5
Image 1 of 5
Image: equipmtl.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,891 lb
Hydraulic Pump Flow Capacity113.1 gal/min

Engine

Engine specifications
Engine ModelSAA6D107E-1
Displacement408 in³
Power Measured @2,000 rpm
Gross Power155.6 hp
Net Power147.6 hp
AspirationTurbocharged
Engine MakeKomatsu
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab120 in
Length of Track on Ground144 in
Tail Swing Radius67 in
Width to Outside of Tracks122 in
Removal Counterweight Clearance42 in
Track Gauge95 in
Cab height90 in
Track length175 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull45,412 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank84.6 gal
Engine Oil6.2 gal
Swing drive1.9 gal
Final Drive1.4 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth261 in
Max Vertical Wall Digging Depth236 in
Minimum swing radius91 in
Max Digging Reach389 in
Max.Dumping Height308 in
Max Digging Reach on Ground383 in
Bucket Digging Force - SAE31,024 lb
Max Digging Height422 in
Bucket Digging Force - ISO33,497 lb
Arm Crowd Force - SAE22,706 lb
Arm Crowd Force-ISO24,279 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
