Komatsu

PC240-6

Excavator

Operating Weight
51,809 lb
Max Digging Depth
231 in
Max Digging Depth
251 in
Net Power
158.3 hp
All excavators

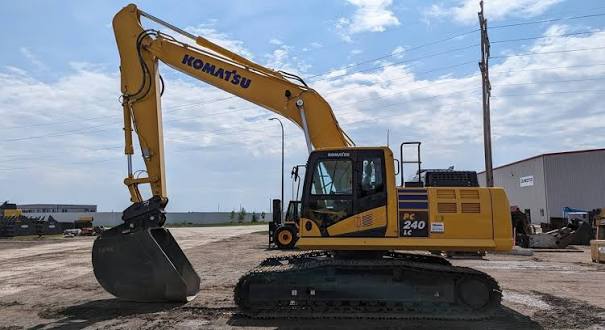

Komatsu PC240-6 Excavator
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,809 lb
Fuel Capacity81.9 gal
Hydraulic Pump Flow Capacity113.6 gal/min
Hydraulic System Fluid Capacity43.9 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelSA6D102
Displacement359 in³
Power Measured @2,300 rpm
Net Power158.3 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab115 in
Length of Track on Ground137 in
Tail Swing Radius113 in
Width to Outside of Tracks118 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge95 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth231 in
Max Reach Along Ground359 in
Max Loading Height241 in
Max Vertical Wall Digging Depth190 in
Max Cutting Height357 in
Shipping Length of Unit384 in
Shipping Height of Unit119 in

Bucket

Bucket specifications
Reference Bucket Capacity1.50 yd³
Maximum Bucket Capacity1.80 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth251 in
Max Vertical Wall Digging Depth203 in
Max Cutting Height361 in
Max Loading Height245 in
Max Reach Along Ground373 in
Shipping Length of Unit388 in
Shipping Height of Unit128 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth274 in
Max Cutting Height370 in
Max Loading Height257 in
Max Vertical Wall Digging Depth238 in
Max Reach Along Ground395 in
Shipping Length of Unit385 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth291 in
Max Cutting Height380 in
Max Reach Along Ground410 in
Max Loading Height267 in
Max Vertical Wall Dig Depth257 in
Shipping Length of Unit386 in
