Komatsu

PC240NLC-6

Excavator

Operating Weight
52,691 lb
Max Digging Depth
231 in
Max Digging Depth
251 in
Net Power
158.0 hp
All excavators

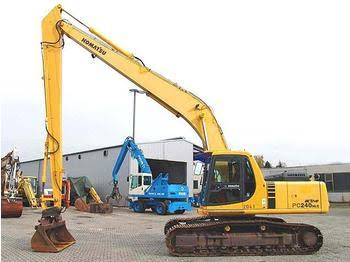

Komatsu PC240NLC-6 Excavator
1 / 5
Image 1 of 5
Image: machineryline.co.ug

Specifications

74 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,691 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity114.2 gal/min
Hydraulic System Fluid Capacity43.9 gal
Hydraulic System Relief Valve Pressure5,049 psi
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity5.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.5 gal
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelSA6D102E
Displacement359 in³
Power Measured @2,100 rpm
Gross Power166.0 hp
Net Power158.0 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab115 in
Length of Track on Ground144 in
Tail Swing Radius113 in
Width to Outside of Tracks118 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge95 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull39,022 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth231 in
Max Reach Along Ground359 in
Max Loading Height241 in
Max Vertical Wall Digging Depth190 in
Max Cutting Height357 in
Shipping Length of Unit384 in
Shipping Height of Unit119 in

Bucket

Bucket specifications
Reference Bucket Capacity1.50 yd³
Maximum Bucket Capacity1.80 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth251 in
Max Vertical Wall Digging Depth203 in
Max Cutting Height361 in
Max Loading Height245 in
Max Reach Along Ground373 in
Shipping Length of Unit388 in
Shipping Height of Unit128 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth274 in
Max Cutting Height370 in
Max Loading Height257 in
Max Vertical Wall Digging Depth238 in
Max Reach Along Ground395 in
Shipping Length of Unit385 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth221 in
Max Cutting Height372 in
Max Reach Along Ground359 in
Max Loading Height256 in
Max Vertical Wall Dig Depth165 in
Shipping Length of Unit381 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth239 in
Max Reach Along Ground374 in
Max Cutting Height374 in
Max Loading Height261 in
Max Vertical Wall Dig Depth189 in
Shipping Height of Unit137 in
Shipping Length of Unit383 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth260 in
Max Reach Along Ground396 in
Max Cutting Height389 in
Max Loading Height274 in
Max Vertical Wall Dig Depth205 in
Shipping Length of Unit383 in
Shipping Height of Unit134 in
