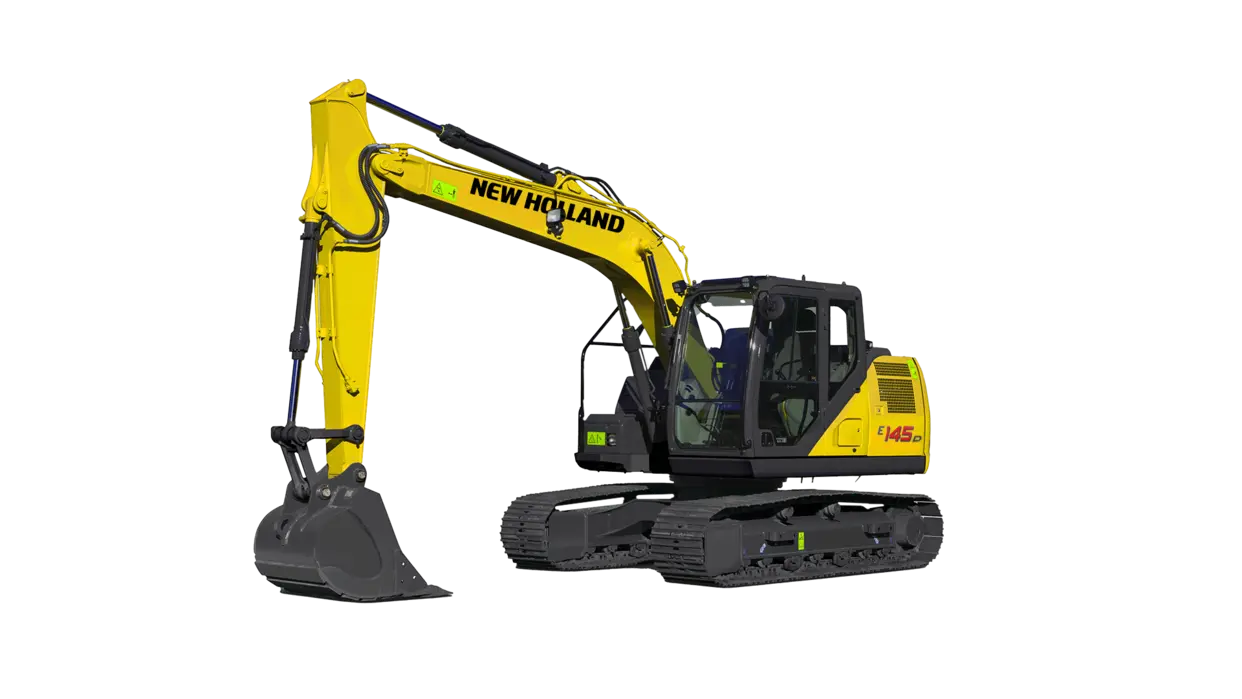

New Holland
E145
- Operating Weight
- 31,725 lb
- Max Digging Depth
- 206 in
- Max Digging Depth
- 221 in
- Net Power
- 101.0 hp
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 31,725 lb |
|---|---|
| Fuel Capacity | 55.0 gal |
| Hydraulic Pump Flow Capacity | 64.0 gal/min |
| Hydraulic System Fluid Capacity | 45.0 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 4.0 gal |
| Cooling System Fluid Capacity | 4.8 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | CNH F4BE0454B*D601 |
|---|---|
| Displacement | 238 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 101.0 hp |
| Aspiration | supercharged and intercooled |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 288 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 110 in |
| Length of Track on Ground | 120 in |
| Tail Swing Radius | 72 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 37 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.8 mph |
| Shoe Size | 24 in |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 206 in |
|---|---|
| Max Reach Along Ground | 309 in |
| Max Loading Height | 240 in |
| Max Vertical Wall Digging Depth | 196 in |
| Max Cutting Height | 332 in |
| Shipping Length of Unit | 296 in |
| Shipping Height of Unit | 110 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 221 in |
|---|---|
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 341 in |
| Max Loading Height | 248 in |
| Max Reach Along Ground | 323 in |
| Shipping Length of Unit | 296 in |
| Shipping Height of Unit | 110 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 240 in |
|---|---|
| Max Cutting Height | 355 in |
| Max Loading Height | 263 in |
| Max Vertical Wall Digging Depth | 233 in |
| Max Reach Along Ground | 342 in |
| Shipping Length of Unit | 296 in |
| Shipping Height of Unit | 110 in |
