Komatsu

PC240NLC-7

Excavator

Operating Weight
51,544 lb
Max Digging Depth
230 in
Max Digging Depth
250 in
Net Power
170.0 hp
All excavators

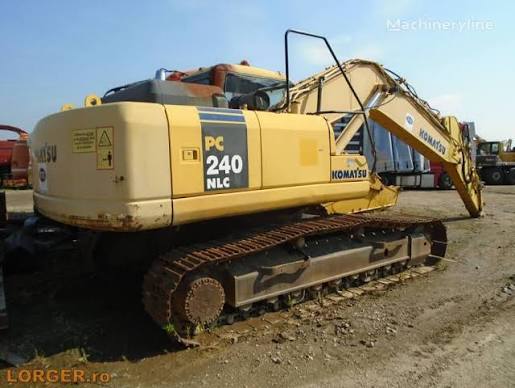

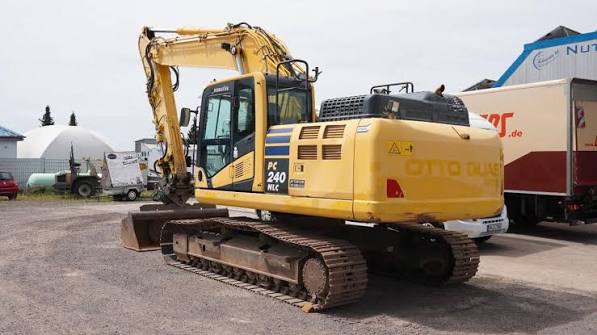

Komatsu PC240NLC-7 Excavator
1 / 5
Image 1 of 5
Image: taopparts.com

Specifications

58 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,544 lb
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity116.3 gal/min
Hydraulic System Fluid Capacity37.8 gal
Hydraulic System Relief Valve Pressure5,405 psi
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity8.2 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.8 gal
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelSAA6D102E-2
Displacement359 in³
Power Measured @2,000 rpm
Net Power170.0 hp
AspirationTurbocharged after cooled

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab119 in
Length of Track on Ground144 in
Tail Swing Radius117 in
Width to Outside of Tracks118 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge94 in
Number of Track Rollers per Side10
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side51
Number of Carrier Rollers per Side2
Drawbar Pull45,349 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth230 in
Max Reach Along Ground357 in
Max Loading Height265 in
Max Vertical Wall Digging Depth187 in
Max Cutting Height381 in
Shipping Length of Unit389 in
Shipping Height of Unit127 in

Bucket

Bucket specifications
Reference Bucket Capacity1.50 yd³
Minimum Bucket Capacity1.29 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth250 in
Max Vertical Wall Digging Depth203 in
Max Cutting Height386 in
Max Loading Height271 in
Max Reach Along Ground381 in
Shipping Length of Unit393 in
Shipping Height of Unit131 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth274 in
Max Cutting Height395 in
Max Loading Height277 in
Max Vertical Wall Digging Depth238 in
Max Reach Along Ground395 in
Shipping Length of Unit390 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth289 in
Max Cutting Height406 in
Max Reach Along Ground410 in
Max Loading Height291 in
Max Vertical Wall Dig Depth246 in
Shipping Length of Unit391 in
