Komatsu

PC290LC-10

Excavator

Operating Weight
67,396 lb
Max Digging Depth
272 in
Net Power
147.0 hp
All excavators

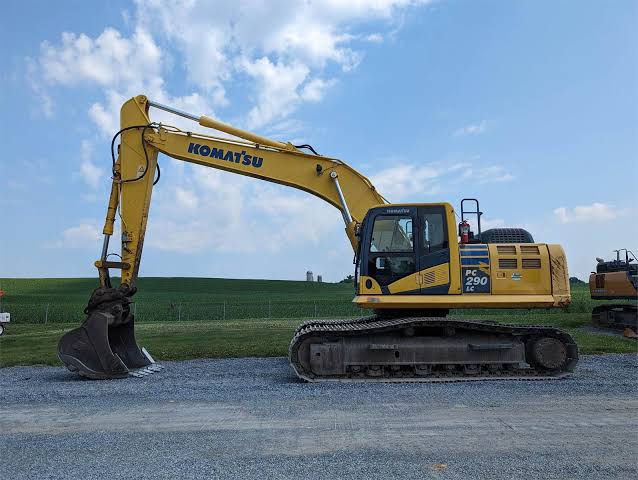

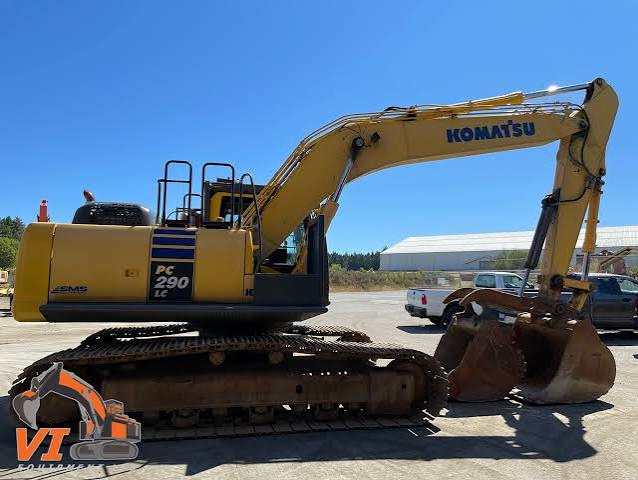

Komatsu PC290LC-10 Excavator
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight67,396 lb
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity118.9 gal/min
Hydraulic System Fluid Capacity66.0 gal
Hydraulic System Relief Valve Pressure5,405 psi
Engine Oil Capacity6.1 gal
Cooling System Fluid Capacity9.5 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.9 gal
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelSAA6D107E-2
Displacement408 in³
Power Measured @2,050 rpm
Gross Power213.0 hp
Net Power147.0 hp
AspirationTurbocharged aftercooled cooled EGR

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge102 in
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side48
Number of Carrier Rollers per Side2
Drawbar Pull56,000 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth272 in
Max Reach Along Ground411 in

Bucket

Bucket specifications
Reference Bucket Capacity1.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
