Hitachi

ZX180LC-5

Excavator

Operating Weight
40,455 lb
Max Digging Depth
259 in
Max Digging Depth
278 in
Net Power
120.7 hp
All excavators

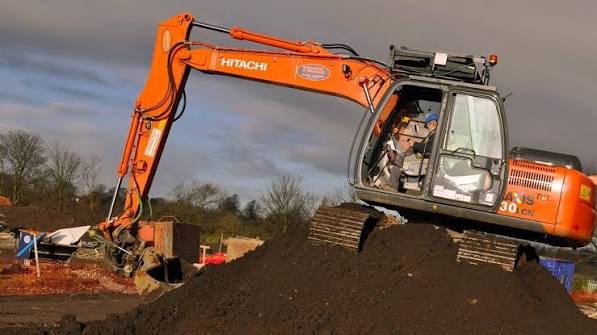

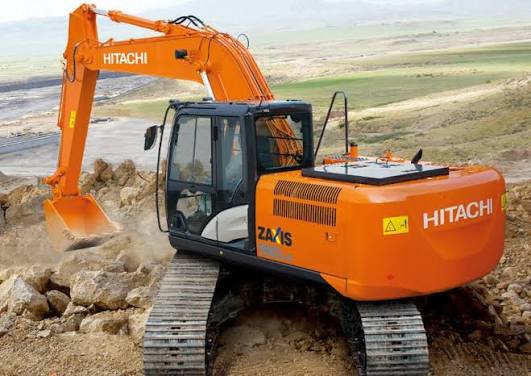

Hitachi ZX180LC-5 Excavator
1 / 5
Image 1 of 5
Image: directindustry.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,455 lb
Fuel Capacity84.6 gal
Hydraulic Pump Flow Capacity50.5 gal/min
Hydraulic System Fluid Capacity58.2 gal
Engine Oil Capacity4.5 gal
Cooling System Fluid Capacity5.9 gal
Operating Voltage24 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine Model4JJ1
Displacement183 in³
Power Measured @2,200 rpm
Net Power120.7 hp
AspirationTurbocharged
Engine MakeIsuzu

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab117 in
Length of Track on Ground165 in
Tail Swing Radius101 in
Width to Outside of Tracks110 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Number of Track Rollers per Side7
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Shoes per Side46
Number of Carrier Rollers per Side2
Drawbar Pull38,030 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth259 in
Max Reach Along Ground366 in
Max Loading Height259 in
Max Vertical Wall Digging Depth220 in
Max Cutting Height37 in
Shipping Length of Unit356 in
Shipping Height of Unit122 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth278 in
Max Vertical Wall Digging Depth248 in
Max Cutting Height386 in
Max Loading Height274 in
Max Reach Along Ground386 in
Shipping Length of Unit356 in
Shipping Height of Unit134 in
