Komatsu

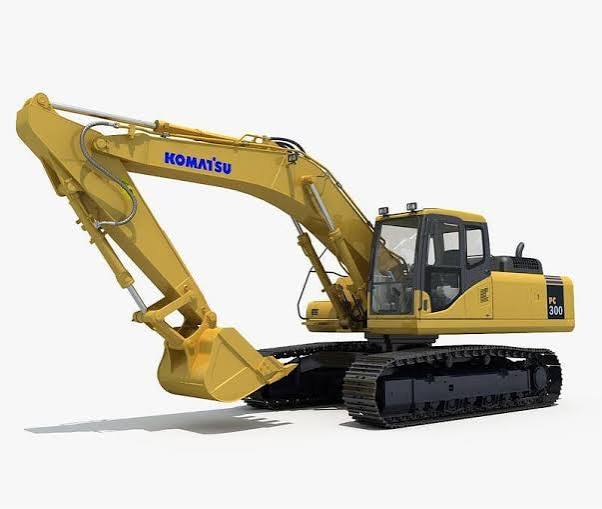

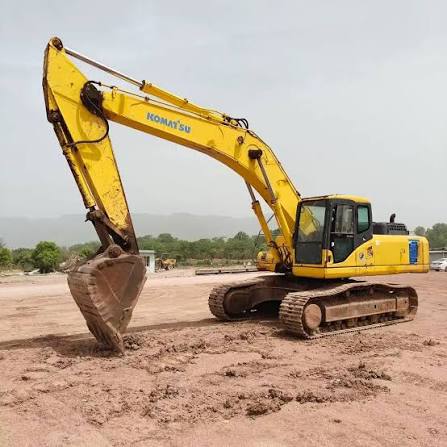

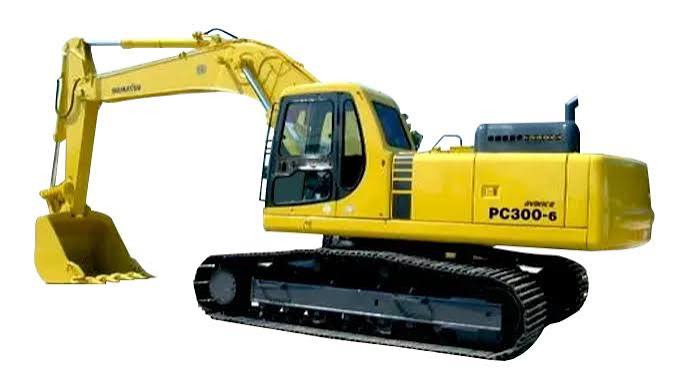

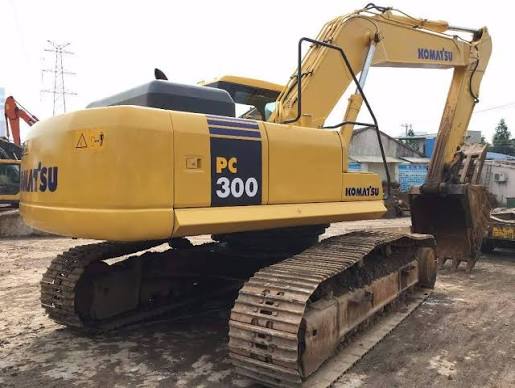

PC300-6 EXCEL
- Operating Weight
- 67,902 lb
- Max Digging Depth
- 251 in
- Max Digging Depth
- 264 in
- Net Power
- 232.0 hp
1 / 5
Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 67,902 lb |
|---|---|
| Fuel Capacity | 142.7 gal |
| Hydraulic Pump Flow Capacity | 132.7 gal/min |
| Hydraulic System Fluid Capacity | 54.2 gal |
| Hydraulic System Relief Valve Pressure | 5,050 psi |
Engine
| Engine Model | SAA6D108E |
|---|---|
| Displacement | 436 in³ |
| Power Measured @ | 2,050 rpm |
| Net Power | 232.0 hp |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 124 in |
| Length of Track on Ground | 146 in |
| Tail Swing Radius | 131 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 102 in |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 251 in |
|---|---|
| Max Reach Along Ground | 393 in |
| Max Loading Height | 260 in |
| Max Vertical Wall Digging Depth | 202 in |
| Max Cutting Height | 378 in |
| Shipping Length of Unit | 438 in |
| Shipping Height of Unit | 137 in |
Bucket
| Reference Bucket Capacity | 1.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.39 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 264 in |
|---|---|
| Max Vertical Wall Digging Depth | 231 in |
| Max Cutting Height | 393 in |
| Max Loading Height | 272 in |
| Max Reach Along Ground | 408 in |
| Shipping Length of Unit | 433 in |
| Shipping Height of Unit | 135 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 292 in |
|---|---|
| Max Cutting Height | 402 in |
| Max Loading Height | 281 in |
| Max Vertical Wall Digging Depth | 256 in |
| Max Reach Along Ground | 431 in |
| Shipping Length of Unit | 431 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 323 in |
|---|---|
| Max Cutting Height | 417 in |
| Max Reach Along Ground | 462 in |
| Max Loading Height | 295 in |
| Max Vertical Wall Dig Depth | 287 in |
| Shipping Length of Unit | 433 in |
