KomatsuKomatsu
PC210-6 MIGHTY
Excavator
28 specifications

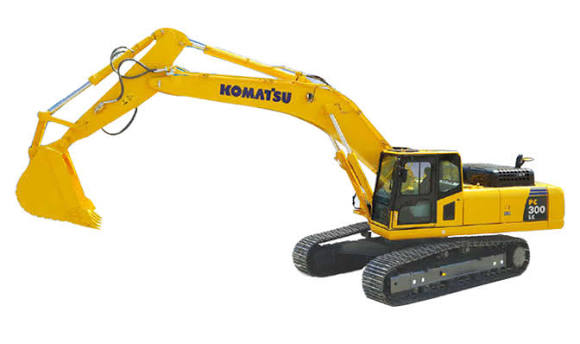

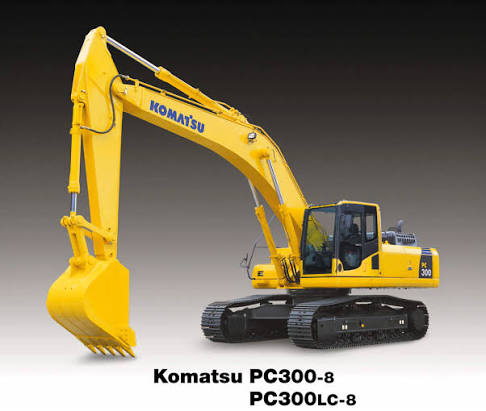

Komatsu
PC300LC-8
- Operating Weight
- 78,817 lb
- Max Digging Depth
- 264 in
- Max Digging Depth
- 292 in
- Net Power
- 246.0 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 78,817 lb |
|---|---|
| Fuel Capacity | 160.0 gal |
| Hydraulic Pump Flow Capacity | 141.0 gal/min |
| Hydraulic System Fluid Capacity | 49.7 gal |
| Hydraulic System Relief Valve Pressure | 5,400 psi |
| Engine Oil Capacity | 9.2 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.5 gal |
| Alternator Supplied Amperage | 60 A |
Engine
| Engine Model | SAA6D114E-3 |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 1,950 rpm |
| Gross Power | 260.0 hp |
| Net Power | 246.0 hp |
| Aspiration | Turbocharged and aftercooled |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 124 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 137 in |
| Width to Outside of Tracks | 135 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Track Gauge | 102 in |
|---|---|
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 34 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 59,300 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 264 in |
|---|---|
| Max Reach Along Ground | 408 in |
| Max Loading Height | 271 in |
| Max Vertical Wall Digging Depth | 233 in |
| Max Cutting Height | 393 in |
| Shipping Length of Unit | 441 in |
| Shipping Height of Unit | 134 in |
Bucket
| Reference Bucket Capacity | 2.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 3.40 yd³ |
| Minimum Bucket Capacity | 1.20 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 292 in |
|---|---|
| Max Vertical Wall Digging Depth | 256 in |
| Max Cutting Height | 402 in |
| Max Loading Height | 281 in |
| Max Reach Along Ground | 431 in |
| Shipping Length of Unit | 439 in |
| Shipping Height of Unit | 130 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 323 in |
|---|---|
| Max Cutting Height | 415 in |
| Max Loading Height | 295 in |
| Max Vertical Wall Digging Depth | 287 in |
| Max Reach Along Ground | 462 in |
| Shipping Length of Unit | 441 in |
| Shipping Height of Unit | 149 in |
