New Holland
E215
- Operating Weight
- 47,399 lb
- Max Digging Depth
- 229 in
- Max Digging Depth
- 243 in
- Net Power
- 160.0 hp
1 / 5

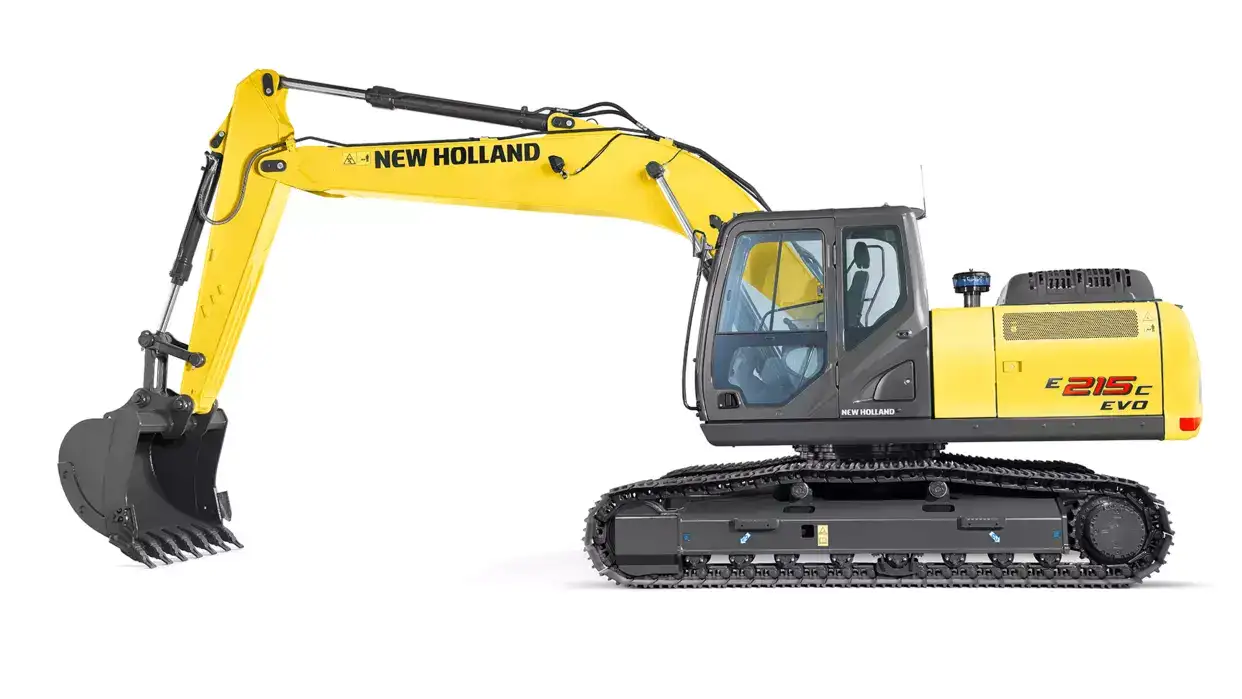

Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 47,399 lb |
|---|---|
| Fuel Capacity | 77.2 gal |
| Hydraulic Pump Flow Capacity | 111.0 gal/min |
| Hydraulic System Fluid Capacity | 71.4 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | CNH - F4BE8604B |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 160.0 hp |
| Aspiration | Turbocharged and intercooler |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 487 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 118 in |
| Length of Track on Ground | 133 in |
| Tail Swing Radius | 109 in |
| Width to Outside of Tracks | 110 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 88 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.8 mph |
| Shoe Size | 24 in |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 229 in |
|---|---|
| Max Loading Height | 256 in |
| Max Vertical Wall Digging Depth | 221 in |
| Max Cutting Height | 364 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.80 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 243 in |
|---|---|
| Max Vertical Wall Digging Depth | 234 in |
| Max Cutting Height | 373 in |
| Max Loading Height | 263 in |
| Max Reach Along Ground | 366 in |
| Shipping Length of Unit | 374 in |
| Shipping Height of Unit | 118 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 264 in |
|---|---|
| Max Cutting Height | 381 in |
| Max Loading Height | 272 in |
| Max Vertical Wall Digging Depth | 257 in |
| Max Reach Along Ground | 385 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 285 in |
|---|---|
| Max Cutting Height | 378 in |
| Max Reach Along Ground | 401 in |
| Max Loading Height | 274 in |
| Max Vertical Wall Dig Depth | 278 in |
