Komatsu

PC350LC-6 MIGHTY

Excavator

Operating Weight
73,634 lb
Max Digging Depth
292 in
Net Power
232.0 hp
All excavators

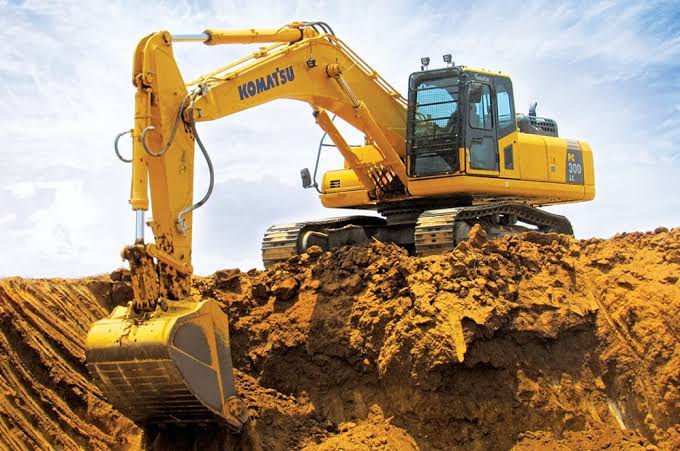

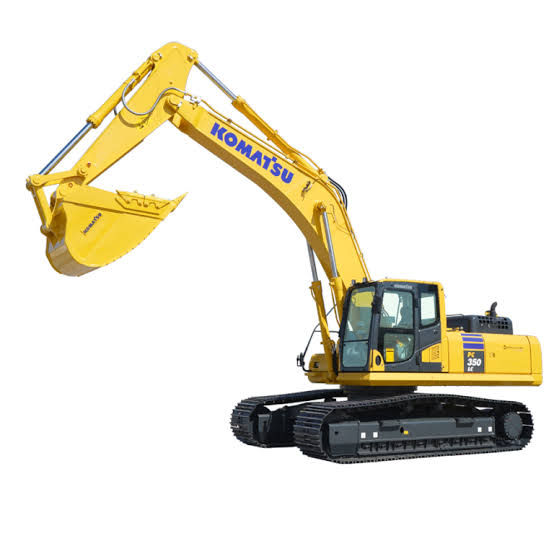

Komatsu PC350LC-6 MIGHTY Excavator
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight73,634 lb
Fuel Capacity142.7 gal
Hydraulic Pump Flow Capacity138.5 gal/min
Hydraulic System Fluid Capacity54.2 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelSAA6D108E
Displacement436 in³
Power Measured @2,050 rpm
Net Power232.0 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab124 in
Length of Track on Ground159 in
Tail Swing Radius131 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance47 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge102 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth292 in
Max Reach Along Ground431 in
Max Loading Height281 in
Max Vertical Wall Digging Depth256 in
Max Cutting Height402 in
Shipping Length of Unit434 in
Shipping Height of Unit130 in

Bucket

Bucket specifications
Reference Bucket Capacity1.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
