Hyundai
JCB
JS240L
Excavator
13 specifications
1 / 5

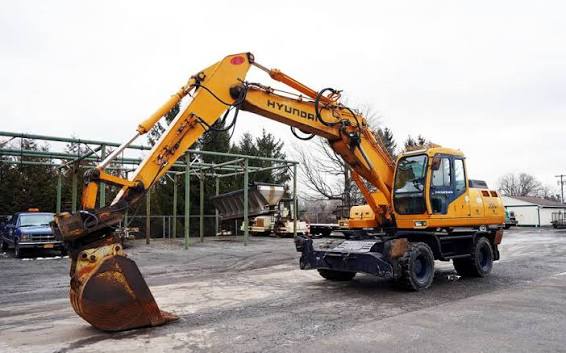

Image 1 of 5
Specifications
66 data points
Operating Specifications
| Operating Weight | 44,203 lb |
|---|---|
| Fuel Capacity | 92.5 gal |
| Hydraulic Pump Flow Capacity | 116.3 gal/min |
| Hydraulic System Fluid Capacity | 87.2 gal |
| Hydraulic System Relief Valve Pressure | 4,550 psi |
| Engine Oil Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 9.5 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 A |
| Hydraulic Pump Type | two variable displacement piston pumps |
| Tire Size | 10-20-14PR |
| Front Diff Fluid Capacity | 4.3 gal |
| Rear Diff Fluid Capacity | 4.3 gal |
Engine
| Engine Model | B5.9-C |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 167.0 hp |
| Net Power | 154.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
| Net Torque | 440 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 125 in |
| Wheelbase | 115 in |
| Overall Width | 9 in |
| Tail Swing Radius | 109 in |
| Upper Structure Clearance | 52 in |
| Overall Width - Outriggers Down | 145 in |
Transmission
| Max Travel Speed | 19.9 mph |
|---|---|
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
| Drawbar Pull | 21,690 lb |
Bucket
| Reference Bucket Capacity | 1.20 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.80 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 222 in |
|---|---|
| Max Cutting Height | 369 in |
| Max Reach Along Ground | 352 in |
| Max Loading Height | 258 in |
| Shipping Length of Unit | 379 in |
| Shipping Height of Unit | 133 in |
| Max Vertical Wall Dig Depth | 199 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 238 in |
|---|---|
| Max Cutting Height | 372 in |
| Max Reach Along Ground | 365 in |
| Max Loading Height | 261 in |
| Shipping Height of Unit | 137 in |
| Shipping Length of Unit | 379 in |
| Max Vertical Wall Dig Depth | 211 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 258 in |
|---|---|
| Max Cutting Height | 377 in |
| Max Reach Along Ground | 383 in |
| Max Loading Height | 268 in |
| Shipping Height of Unit | 126 in |
| Shipping Length of Unit | 370 in |
| Max Vertical Wall Dig Depth | 229 in |
Boom/Stick Mobile Excavator Option 4
| Max Digging Depth | 298 in |
|---|---|
| Max Cutting Height | 398 in |
| Max Reach Along Ground | 420 in |
| Max Loading Height | 288 in |
| Shipping Height of Unit | 142 in |
| Shipping Length of Unit | 374 in |
| Max Vertical Wall Dig Depth | 270 in |
