Komatsu

PC350LC-8

Excavator

Operating Weight
72,660 lb
Max Digging Depth
291 in
Net Power
246.0 hp
All excavators

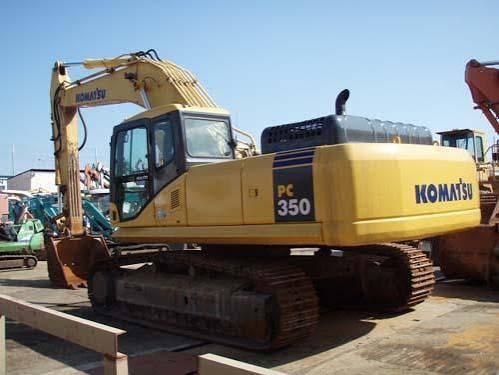

Komatsu PC350LC-8 Excavator
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight72,660 lb
Fuel Capacity160.0 gal
Hydraulic System Fluid Capacity49.7 gal
Engine Oil Capacity9.2 gal
Cooling System Fluid Capacity8.5 gal
Swing Drive Fluid Capacity4.4 gal

Engine

Engine specifications
Engine ModelSAA6D114E-3
Displacement505 in³
Power Measured @1,950 rpm
Gross Power260.0 hp
Net Power246.0 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab125 in
Length of Track on Ground196 in
Tail Swing Radius137 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance47 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side8
Max Travel Speed3.4 mph
Number of Shoes per Side48
Number of Carrier Rollers per Side2
Drawbar Pull59,300 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth291 in
Max Reach Along Ground291 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
