Liebherr

A918 Litronic

Excavator

Operating Weight
43,600 lb
Net Power
161.0 hp
All excavators

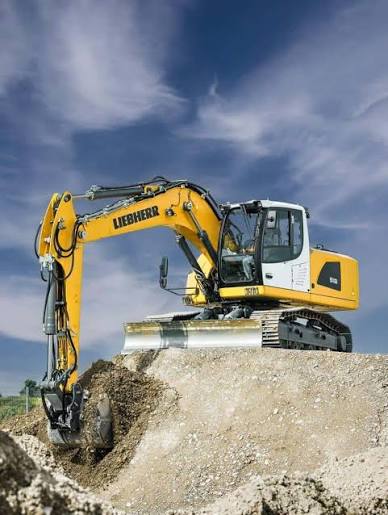

Liebherr A918 Litronic Excavator
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,600 lb
Fuel Capacity97.5 gal
Hydraulic Pump Flow Capacity79.0 gal/min
Hydraulic System Fluid Capacity92.5 gal
Hydraulic System Relief Valve Pressure5,076 psi
Hydraulic Pump TypeLiebherr axial piston variable displacement pump

Engine

Engine specifications
Engine ModelLiebherr D924
Displacement275 in³
Power Measured @1,800 rpm
Net Power161.0 hp
Number of Cylinders4
Stroke5 in
Bore4 in
Engine Type4 cylinder in-line
Cooling systemWater-cooled

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab126 in
Wheelbase101 in
Overall Width99 in
Tail Swing Radius85 in

Transmission

Transmission specifications
Max Travel Speed18.6 mph

Bucket

Bucket specifications
Maximum Bucket Capacity1.40 yd³
Minimum Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque36,878 lb-ft

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth223 in
Max Reach Along Ground360 in
Shipping Length of Unit346 in
Shipping Height of Unit120 in
Max Dumping Height30 in
Max breakout force22,300 lb

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth210 in
Max Reach Along Ground337 in
Shipping Height of Unit125 in
Shipping Length of Unit326 in
Max Dumping Height261 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth221 in
Max Reach Along Ground348 in
Shipping Height of Unit127 in
Shipping Length of Unit337 in

Electrical System

Electrical System specifications
Batteries2 x 135 Ah/12 volts
Alternator—
Voltage24 V
