Doosan

SOLAR 210W-V

Excavator

Operating Weight
43,651 lb
Net Power
156.0 hp
All excavators

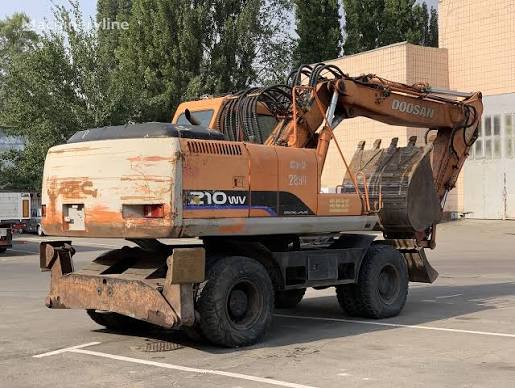

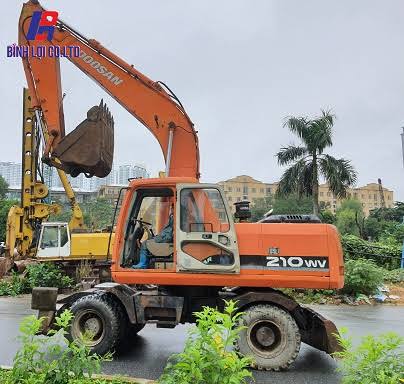

Doosan SOLAR 210W-V Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,651 lb
Fuel Capacity92.5 gal
Hydraulic Pump Flow Capacity126.3 gal/min
Hydraulic System Fluid Capacity42.3 gal
Hydraulic System Relief Valve Pressure4,978 psi
Engine Oil Capacity5.5 gal
Cooling System Fluid Capacity13.0 gal
Operating Voltage24 V
Alternator Supplied Amperage60 A
Tire Size10.00-20-14PR(OTR)

Engine

Engine specifications
Engine ModelDB 58TIS
Displacement353 in³
Power Measured @2,200 rpm
Net Power156.0 hp
Number of Cylinders6
Torque Measured @1,600 rpm
Net Torque434 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab124 in
Wheelbase113 in
Overall Width8 in
Tail Swing Radius109 in
Upper Structure Clearance50 in

Transmission

Transmission specifications
Max Travel Speed21.8 mph
Transmission Typehydrostatic powershift
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Reference Bucket Capacity0.60 yd³
Maximum Bucket Capacity1.50 yd³
Minimum Bucket Capacity1.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth259 in
Max Cutting Height389 in
Max Reach Along Ground383 in
Max Loading Height269 in
Max Vertical Wall Dig Depth231 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth239 in
Max Cutting Height389 in
Max Reach Along Ground370 in
Max Loading Height260 in
Max Vertical Wall Dig Depth212 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth226 in
Max Cutting Height364 in
Max Reach Along Ground350 in
Max Loading Height253 in
Max Vertical Wall Dig Depth192 in

Boom/Stick Mobile Excavator Option 4

Boom/Stick Mobile Excavator Option 4 specifications
Max Digging Depth220 in
Max Cutting Height407 in
Max Reach Along Ground347 in
Max Loading Height291 in
