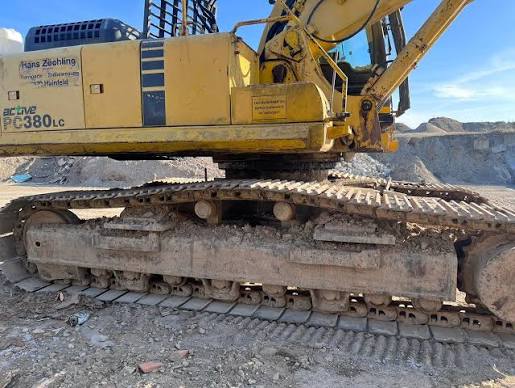

Komatsu
PC380LC-6
- Operating Weight
- 87,744 lb
- Max Digging Depth
- 246 in
- Max Digging Depth
- 259 in
- Net Power
- 232.0 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 87,744 lb |
|---|---|
| Fuel Capacity | 142.7 gal |
| Hydraulic Pump Flow Capacity | 141.6 gal/min |
| Hydraulic System Fluid Capacity | 54.2 gal |
| Hydraulic System Relief Valve Pressure | 5,049 psi |
| Engine Oil Capacity | 7.4 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Swing Drive Fluid Capacity | 3.4 gal |
Engine
| Engine Model | SAA6D108-2 |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 1,750 rpm |
| Net Power | 232.0 hp |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 130 in |
| Length of Track on Ground | 172 in |
| Tail Swing Radius | 133 in |
| Width to Outside of Tracks | 137 in |
| Removal Counterweight Clearance | 53 in |
Undercarriage
| Ground Pressure | 10 psi |
|---|---|
| Track Gauge | 114 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 76,055 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 246 in |
|---|---|
| Max Reach Along Ground | 393 in |
| Max Loading Height | 267 in |
| Max Vertical Wall Digging Depth | 197 in |
| Max Cutting Height | 384 in |
| Shipping Length of Unit | 444 in |
| Shipping Height of Unit | 139 in |
Bucket
| Reference Bucket Capacity | 1.80 yd³ |
|---|
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 259 in |
|---|---|
| Max Vertical Wall Digging Depth | 226 in |
| Max Cutting Height | 398 in |
| Max Loading Height | 278 in |
| Max Reach Along Ground | 408 in |
| Shipping Length of Unit | 439 in |
| Shipping Height of Unit | 134 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 285 in |
|---|---|
| Max Cutting Height | 408 in |
| Max Loading Height | 285 in |
| Max Vertical Wall Digging Depth | 251 in |
| Max Reach Along Ground | 431 in |
| Shipping Length of Unit | 438 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 317 in |
|---|---|
| Max Cutting Height | 421 in |
| Max Reach Along Ground | 462 in |
| Max Loading Height | 301 in |
| Max Vertical Wall Dig Depth | 282 in |
| Shipping Length of Unit | 439 in |
