New Holland

E235SRLC

Excavator

Operating Weight
52,911 lb
Max Digging Depth
264 in
Max Digging Depth
280 in
Net Power
158.0 hp
All excavators

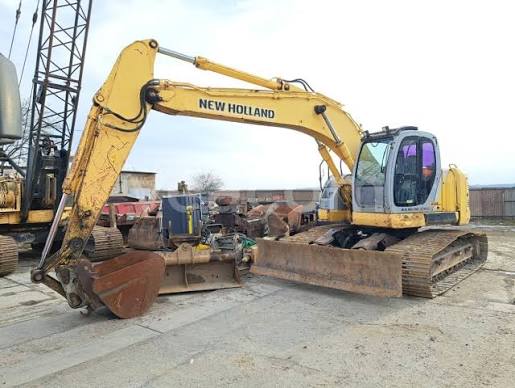

New Holland E235SRLC Excavator
1 / 5
Image 1 of 5
Image: m.nettikone.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,911 lb
Fuel Capacity76.7 gal
Hydraulic Pump Flow Capacity111.0 gal/min
Hydraulic System Fluid Capacity60.8 gal
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity5.1 gal
Operating Voltage24 V
Swing Drive Fluid Capacity2.0 gal
Alternator Supplied Amperage35 A

Engine

Engine specifications
Engine Model6D34-TLU2F
Displacement358 in³
Power Measured @2,000 rpm
Net Power158.0 hp
Aspirationturbocharged intercooler

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab122 in
Length of Track on Ground152 in
Tail Swing Radius67 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge102 in
Number of Track Rollers per Side9
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth264 in
Max Reach Along Ground380 in
Max Loading Height332 in
Max Vertical Wall Digging Depth239 in
Max Cutting Height445 in
Shipping Length of Unit350 in
Shipping Height of Unit122 in

Bucket

Bucket specifications
Reference Bucket Capacity0.90 yd³
Maximum Bucket Capacity1.29 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth280 in
Max Vertical Wall Digging Depth256 in
Max Cutting Height457 in
Max Loading Height343 in
Max Reach Along Ground396 in
Shipping Length of Unit350 in
Shipping Height of Unit122 in
