Komatsu

PC40-2

Mini Excavator

Operating Weight
9,560 lb
Max Digging Depth
126 in
Net Power
35.0 hp
All mini excavators

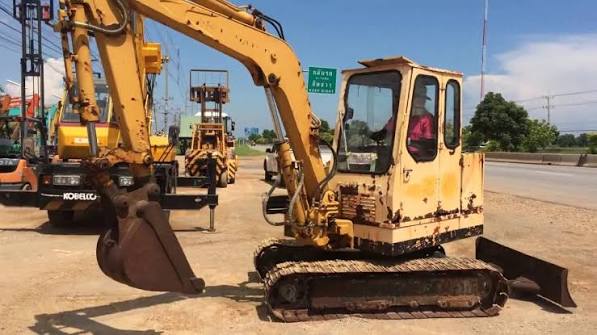

Komatsu PC40-2 Mini Excavator
1 / 5
Image 1 of 5
Image: toku-world.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,560 lb

Engine

Engine specifications
Engine Model3D94-2A
Displacement135 in³
Net Power35.0 hp
Max Torque89 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab96 in
Length of Track on Ground69 in
Tail Swing Radius64 in
Width to Outside of Tracks70 in
Removal Counterweight Clearance24 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge54 in
Max Travel Speed1.4 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth126 in
Max Reach Along Ground216 in
Max Vertical Wall Digging Depth98 in
Max Loading Height124 in
Shipping Length of Unit207 in
Max Cutting Height190 in
Shipping Height of Unit96 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth145 in
Max Cutting Height198 in
Max Loading Height130 in
Max Vertical Wall Digging Depth110 in
Max Reach Along Ground228 in
Shipping Height of Unit96 in
