Komatsu

PC25R-8

Mini Excavator

Operating Weight
5,842 lb
Max Digging Depth
101 in
Net Power
23.8 hp
All mini excavators

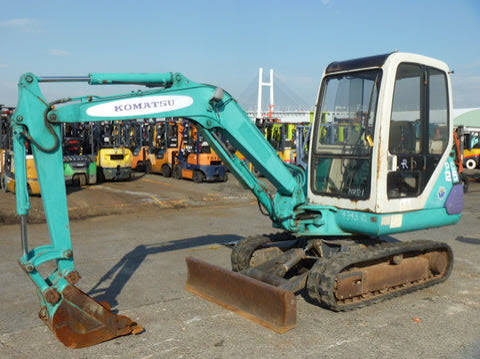

Komatsu PC25R-8 Mini Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,842 lb
Fuel Capacity9.3 gal
Hydraulic Pump Flow Capacity17.5 gal/min
Hydraulic System Fluid Capacity7.7 gal
Hydraulic System Relief Valve Pressure2,990 psi

Engine

Engine specifications
Engine Model3D82AE
Displacement81 in³
Power Measured @2,400 rpm
Net Power23.8 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab97 in
Length of Track on Ground59 in
Tail Swing Radius50 in
Width to Outside of Tracks60 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge48 in
Max Travel Speed3.0 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth101 in
Max Reach Along Ground178 in
Max Vertical Wall Digging Depth85 in
Max Loading Height121 in
Shipping Length of Unit179 in
Max Cutting Height173 in
Shipping Height of Unit97 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth111 in
Max Cutting Height182 in
Max Loading Height131 in
Max Vertical Wall Digging Depth103 in
Max Reach Along Ground193 in
Shipping Height of Unit97 in
Shipping Length of Unit180 in
